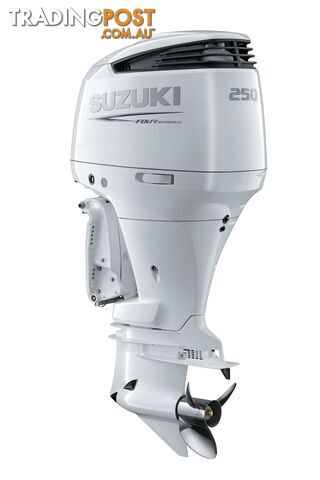

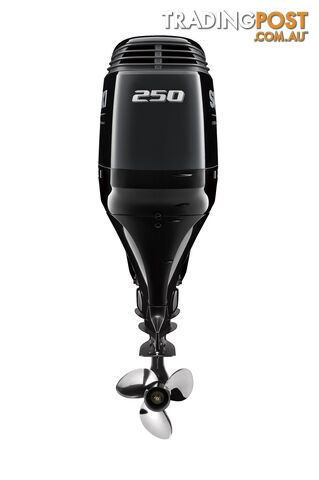

DF250AP

The Worlds First Selective Rotation Outboard
Showcasing Suzukis advanced technologies and designs, Suzukis flagship DF300 outboard has been recognised twice as the most innovative outboard in the industry. The original DF300 was launched as the worlds first 300HP 4-stroke outboard and was acknowledged for this by the National Marine Manufacturers Association (NMMA) with its 2006 Innovation Award. The new DF300AP incorporates several new features, the most notable being Suzuki Selective Rotation. By strengthening the lower units forward and reverse gearing, Suzuki engineers have designed a lower unit for the DF300AP that will run in either right or left rotation. With this worlds first feature, the DF300AP was recognized once again with the 2012 NMMA Innovation Award. The DF250AP is based on the DF300AP and shares the same award winning innovations and designs of Suzukis flagship outboard. Advanced features like Suzuki Selective Rotation, Suzuki Precision Control, and Suzuki Lean Burn Control, plus big V6 power combine to provide boaters with outstanding performance and great convenience.
Suzuki Selective Rotation
In multi-outboard installations on large boats, a counterrotation outboard is usually paired with a regular rotation model to help keep the boat traveling on an even keel and in a straight line. The DF300AP/250AP is built with special counter rotating gearing in the lower unit, which causes the prop to rotate in the opposite direction. Suzuki Selective Rotation eliminates the need to purchase a dedicated counter-rotation outboard by using a special switch that when connected to a circuit inside of the engine compartment, turns a regular rotation outboard into a counter-rotation model with a counter rotational propeller. This industry first is made possible through a special, unified design of gears, shaft, and bearings in the lower unit that are designed to operate reliably and efficiently in either regular or counter-rotation directions

New Lower Unit
Compared to the original DF300, the biggest changes youll find on these outboards are in the lower unit, which was redesigned for the Suzuki Selective Rotation systemthe worlds first integration of regular and counter-rotation models into a single unit. The system consists of a new drive gear layout in the lower unit that allows the outboard to operate in either regular or counter-rotation mode, and a switch that connects to a circuit in the engine compartment that engages the counter-rotation mode. Like the DF300, the new DF300AP/250AP utilises an aggressive final drive ratio of 2.08:1 allowing it to turn a 406mm (16-inch) diameter propeller available in various pitch size for optimum performance on a wide variety of boats. Changes to gear designs provide greater durability, and adding a two-way water inlet changes water flow into the cooling system for increased cooling efficiency.

Specifications

Recommended Transom Height (mm)
L: 508, X: 635, XX: 762

Weight (kg*)
L: 284, X: 290, XX: 299

Engine type
DOHC 24-Valve

Piston Displacement (cm³)
4,028

Maximum Output (kw)
183.9

Steering
Remote (DBW)

Recommended Fuel
RON94 / AKI89

Alternator
12V 54A

Gear Ratio
2.08 : 1

Exhaust
Through Prop Hub Exhaust

Starting system
Electric

Cylinders
V6 (55°)

Fuel Delivery System
Electronic Fuel Injection

Bore X Stroke (mm)
98 x 89

Full Throttle Operating Range (rpm)
5,500 - 6,100

Oil Pan Capacity (L)
8

Fuel Tank Capacity (L)
-

Trim Method
Power Trim and Tilt

Gear Shift
F-N-R

Propeller Selection (Pitch)
15" - 27.5" (R/R), 17" - 26" (C/R)
