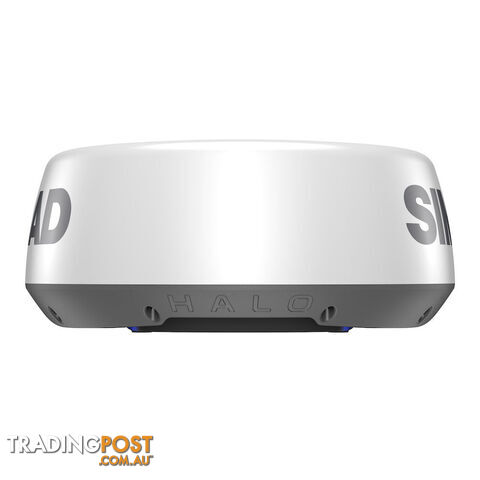

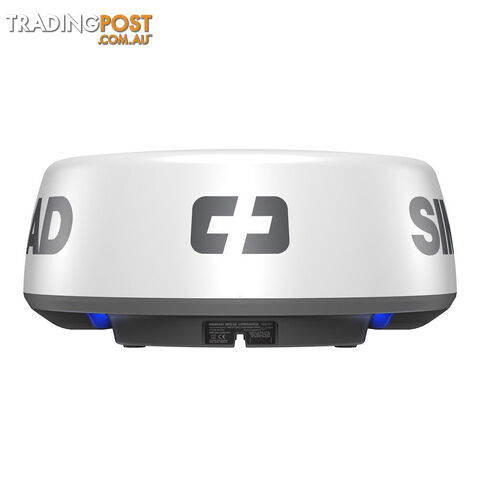

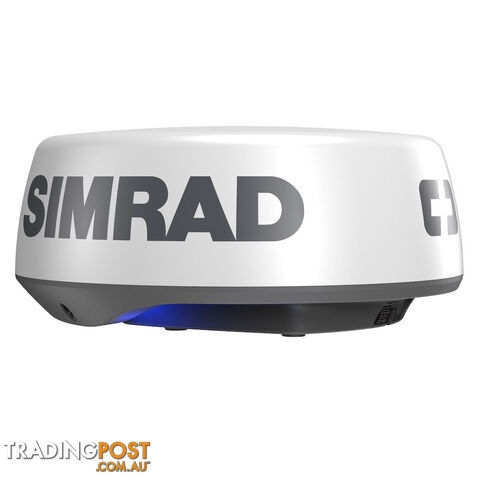

SIMRAD HALO20+ RADAR

HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverageup to 36 nautical milesfrom a compact 20-inch dome antenna.

See Near and Far with One Compact Dome

Perfect for a wide range of coastal bay boats, HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radars pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides better separation between small and distant targets.

The Ultimate View for Collision Avoidance

HALO20+ radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.

VelocityTrack Doppler Technology Built-In

VelocityTrack technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO20+ radar automatically checks every target in range; theres no need to manually select individual targets, and no limit to the number of targets on screen at one time. Velocity Track and MARPA use requires a good quality heading and GPS source.

Ready When You Are

HALO20+ radar wakes instantly from its low-power standby mode, delivering high-speed radar coverage exactly when and where you need it. Even if your HALO20+ is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether youre navigating through crowded waterways or contending with poor visibility, HALO20+ radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

Easy to Use

Harbour, Offshore, Weather, Bird, and custom modes tune HALO20+ radars advanced signal processing to help ensure that targets can be seen vividly even in the toughest environmental conditions.

Key Features

36 nm range from a compact 20-inch dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both near and far
Ultra-fast 60 RPM operation at ranges up to 1.5 nm
VelocityTrack Doppler technology for collision avoidance
Easy operation with harbour, offshore, weather, and bird modes
MARPA target tracking (up to 10 targets, 20 in dual range)
Ready instantly from standby
