PLATINUM 23FT ULTIMATE FAMILY DESIGN – 2/3 BUNKS

Looking for a caravan that's perfect for family vacations? Look no further than the Ultimate Family caravan by . This stylish and functional caravan is perfect for exploring all that Australia has to offer. With its sleek exterior and spacious interior, the Ultimate Family caravan has everything you need to make your next family vacation a success. So hit the open road and start making memories today with the Ultimate Family caravan.
-

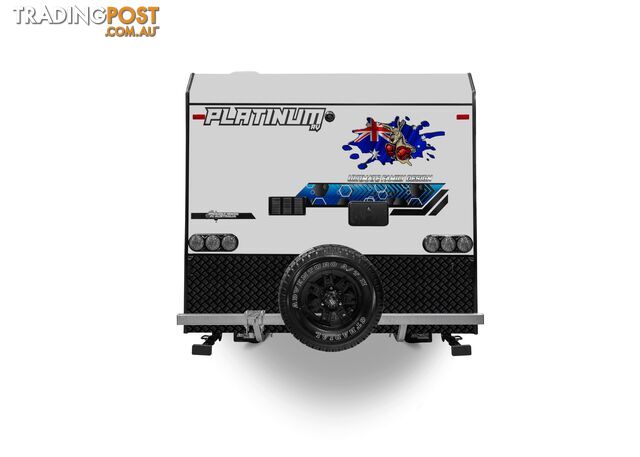

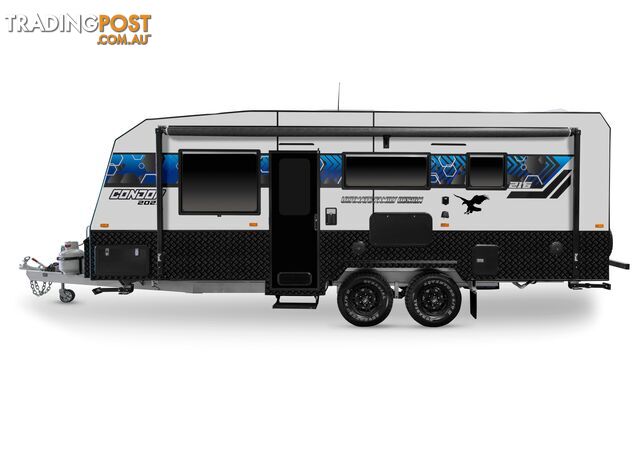

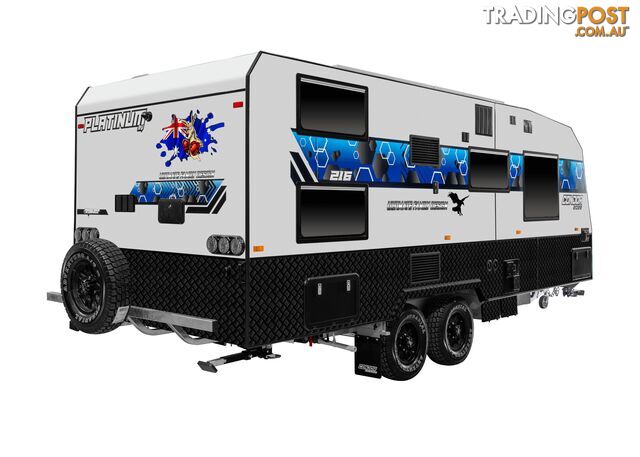

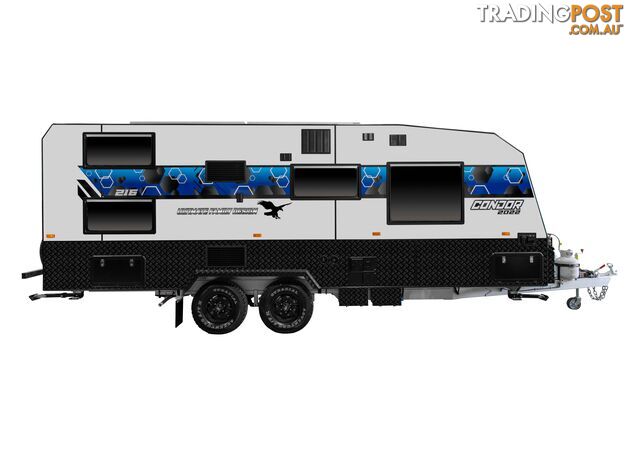

EXTERIOR
The exterior of the 23ft Ultimate Family van is tough and functional, yet still stylish and chic – perfect for taking on the Australian terrain. So if you’re looking for the perfect caravan for your next family adventure, be sure to check out the Ultimate Family by . You won’t be disappointed!

INTERIOR
This sleek and stylish caravan is packed with all the features and amenities you need to make your family vacation truly unforgettable. With plenty of room to sleep, cook and relax, you’ll enjoy all the comforts of home while on the road. And with its functional design and Australian- tough construction, you can rest assured that your Ultimate Family caravan will be able to handle anything the open road throws at it.
-
Full Specification:

Specifications
Cabin Length: 7 Metres (23 Feet)
Overall Width: 2.4 Metres (7.8 Feet)
Internal Height: 2 Metres (6.56 Feet)
Overall Height: 3 Meters (9.8 Feet)
Ground Clearance: 620 MM
ATM Weight: 3200 KG
Payload Weight: 540 KG
Tare Weight: 2660 KG
Ball Weight: 280 KG
-
Chassis
6″ A-Frame (With A-Frame Mesh)
6″ G&S Double Boxed Chassis
Rocker Roller Suspension
235 / 15″ all terrain tyres & rims
3 arm bumper for extra strength
50mm coupling with handbrake
1 x spare tyre 15″ matching alloy
Electric brakes to all wheels with breakaway unit
2" Riser
12 pin flat trailer plug with fridge option on 12v
2 x 9kg gas bottles
Aluminium Step with LED Light
2 x 95 litre water tanks
Drop Down Legs
Extended A-Frame with H Beam
Jacking point on Chassis
-
Internal
RV Queen size bed with inner spring mattress (6’2ft x 5ft – provision for 8” bolster)d with inner spring mattres
TV Swivel Bracket
Bedroom Robes
Lift up queen bed on struts with underneath storage
Gas Strut Cupboards
Black Bathroom Pack (Towel Rail & Toilet Roll Holder)
2 x Water tank gauges
LED touch lights to all beds and dinette
Telescopic Drop Down Table (for L Shape Seating)
Black Tapware & Sink
Laminated bench tops
Full ensuite with separate shower & toilet
Fire Extinguisher
L-shape seating in soft vin
Smoke Detector
Fully integrated kitchen with ball bearing runner drawers
Ceramic ensuite vanity basin
Dometic double glazed windows with inbuilt privacy & fly screens
1 x Sirocco 12v Fan
199 litre Thetford AES 3 way fridge/freezer
Internal LED lights
 Slide out pantry 1
24” TV/DVD Player Combo
-
Exterior
2 x Lockable water fillers
External door handle light
2 x External LED lights
External speakers
Jockey Wheel
Aussie Traveller Traveller / Camec triple lock door with fly screen
LED tail lights
Mud Flaps
Wineguard Antenna
Safety Dave reverse camera with 6” monitor
2 x Safety Chains
Full tunnel boot (with LED lighting)
External 240V point
17ft Aussie Traveller roll out awning (with centre support bracket) 17
Provision for a bike rack
External Gas Bayonet
Waste water to common outlet
External picnic table
Mains pressure inlet
Tool Box with slide out tray
2 x Heki roof hatch with LED’s
External 12V point
-
Construction
12mm marine ply floor (membrane coated)
No more than 11” spacing between frame
CNC Cut Facial Furniture
Double ribbed extra strong aluminium cladding
3.2mm white ply
Aluminium H frame to A/C for added strength
All furniture stapled and screwed for extra strength
Meranti timber frame – all sides 42mm
Fully Insulated
One piece moulded shower
560mm high black checker plate
-
Electrical & Plumbing
Anderson plug for accelerated charging
30amp solar regulator with digital battery monitor display
2 x 12v exhaust fans
12V Master Switch
12V Water pump
Power points throughout
28 Litre Swift gas & electric hot water service
Stainless Steel Sink
Flick Mixer Tap (Filtered Water)
Tap on A-frame
Fusion DVD / multimedia player receiver & Bluetooth
Thetford swivelling toilet & cassette
IBIS 4 reverse cycle A/C whisper quiet with cabin climate control & remote 1
2 x 120 amp deep cycle battery (with 15amp battery charger
Microwave – 20 Litre
12v swift range hood under mount
 2 x 190w roof mounted solar panel
Full Swift oven 3 gas & 1 electric stove top plus grill
-
