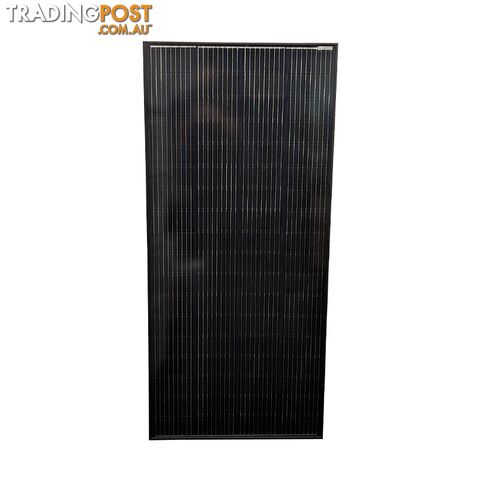

Sphere 200w Mono Crystalline Twin Cell BLACK Solar Panel - 670x1480x35mm

Sphere Solar Panel Range

View Brochure
Sphere 200w Mono Crystalline Twin Cell BLACK Solar Panel - 670x1480x35mm
Product Code:500-06270

Introducing the newest addition to the Sphere Twin Cell Solar Panel range - now available with Black-on-Black Frames. Our innovative Twin Cell Technology is now combined with a sleek black frame and backing, providing a modern and stylish look that's perfect for any RV or caravan design.

Product Description

The black-on-black design adds a stylish touch to your power system and matches the trend of black frame panels that are appearing on the market. This new colour option is perfect for those looking to create a seamless and cohesive look on their vehicle, blending in effortlessly with minimalist colour schemes of modern RV designs.

Sphere Twin Cell Solar Panels are still the best solution for tackling the common issue of partial shading that can drastically reduce the output of conventional solar panels. With our unique parallel design, each side of the panel functions independently, ensuring consistent power output even when there is partial shading.

Features:

Sphere Twin Cell Solar Technology for improved performance in partial shade.
Black frame and backing for a modern and stylish look
Provides a sleek and elegant addition to any RV or caravan design.
By-passed diodes to improve reliability and further minimize power drops caused by shade.
Antireflective, high transparency tempered glass for durability
IP65 rated junction box provides complete protection against dust and water.
Specifications


Part number



500-06270



500-06272

Electricity Performance



Standard Test Conditions



1000W/M2,1.5AM,25

Peak Power Output (W)



200 W



250W

Power Output Tolerance（％）



3%



3%

Maximum Power Voltage (V)



20.6



20.61

Maximum Power Current (A)



9.71



12.13

Short Circuit Current（A）



9.85



12.35

Open Circuit Voltage(V)



24.1



24.1

Maximum System Voltage



1000V/DC



1000V/DC

Mechanical Performance



Junction Box Type



0.9 m 4mm 2 solar cable fitted with MC 4 IP65

Number of Cells



4*18 72 72pcs



4*18 72pcs

Module Size (mm)



670*1480*35*30*1.2



670*1850*35*30*1.2

Module Net Weight



11 KG



14KG

Temperature Coefficient



Working Temperature



﹣40 ～85 ℃



﹣40～85℃

Power TK



﹣0.45%/℃



﹣0.45%/℃

Open Circuit Voltage T



﹣0.3 3%/ ℃



﹣0.33%/℃

Short Circuit Current T



0.045%/



0.045%/℃

Test temperature



25±2 ℃



25±2℃

Guarantee of power output



≦10 Years



≧90%

≦25 Years



≧80%

Material Warranty



12 Months
