Sphere 12V 200AH Lithium Rechargeable Battery.

Name: Sphere 12V 200AH Lithium Rechargeable Battery.
Brand: Custom
SKU: QYSF62
Availability: OutOfStock

Posted More than 1 month agoAd Code QYSF62

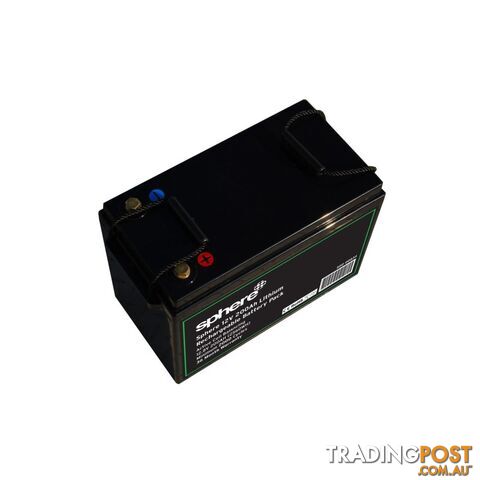

Sphere 12V 200AH Lithium Rechargeable Battery. - photo 1 of 1

1 photo

Contact for price

Verified seller

Description

Sphere 12V 200AH Lithium Rechargeable Battery.
Product Code:500-00834

Sphere lithium batteries are the future of mobile power storage. Lithium batteries are much lighter than traditional lead acid and AGM batteries and deliver unrivalled cycle life, more than four times more cycles compared to lead acid and AGM batteries.

Product Description

Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and feature a built-in battery management system for safety.

If you are replacing an existing deep-cycle lead acid or AGM battery you can continue to use your same battery charging system and the built-in battery management system will do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will be much quicker.

Sphere lithium batteries use Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assistâs in getting the battery as close to 100% charge levels as possible.

Features:
200AH Lithium Ion
2000+Cycles
Built in advanced BMS with Dynamic cell balancing
Lightweight
Can be connected in series or parallel, maximum Inseries voltage of 30.4V
3 Year Warranty
Note: This battery canât be used to start motor vehicles
Specifications

Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 365x185x245mm

Chemical:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Lithium Iron LiFePo4

Product Weight:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 19.7kg

Operating Temperature Range: -20Â°C ~ +60Â°C

Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 12.8VDC

Amperage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 200AH

Max Continuous Current:Â Â Â Â Â Â Â Â Â Â Â Â 100A

Max 10 Second Pulse:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 150A

Min Charge Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2A

Nominal Charge Rate:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 30A

Max Charge Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 100A

Max Charge Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 14.8V

Recommended Charge Rate:Â Â Â Â Â 30A

Cell Balancing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5A H charge & discharge

Cycles @ 100% DOD:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOD 2000 Cycles

Cycles @ 80% DOD:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOD 3000 Cycles

Cycles @ 50% DOD:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOD 3500 Cycles

Cycles @ 30% DOD:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOD 8000 Cycles

Low Voltage cut out:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10.0VDC

Maximum In-series voltage:Â Â Â Â Â Â Â 30.4V

Â

Terminal:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â T10
