Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX

Description
Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX

The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

Features:

The Victron EasySolar-II GX integrates the following elements:

- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifiesmost installations, savingtime and money.

Display and Wi-Fi

- The display reads battery, inverter and solar charge controller parameters.
- The same parameters can be accessed with a smartphone or other Wi-Fi enabled
- device.
- In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller

- The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
- MultiPlus-II inverter/charger.
- The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device:
The integrated GX device includes:

- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
- battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively aVE.Bus and a VE.Direct connection.

Specifications:

Amps 70.0 AmpsModelEasySolar 24/3000/70-32AC Input Voltage187-265 VACAC Input Frequency Range45 – 65 HzPeak Power5500WOperating Temperature Range-20 to +45 °C (fan assisted cooling) Max. altitude 2000 mHumidityMax. 95%Output Power2400W (continuous output power at 25­­°C) | 2200W (continuous output power at 40­­°C) | 1700W (continuous output power at 55­­°C)Net Weight (kg)26.0 KgCharge voltage 'absorption'28.8VCharge Voltage Float - Wet (25 degrees)**27.6VCharge voltage 'storage'26.4VInput Voltage19-33VProduct Dimensions (mm) HxWxD499 x 268 x 237

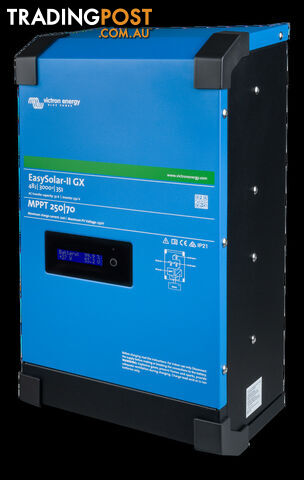

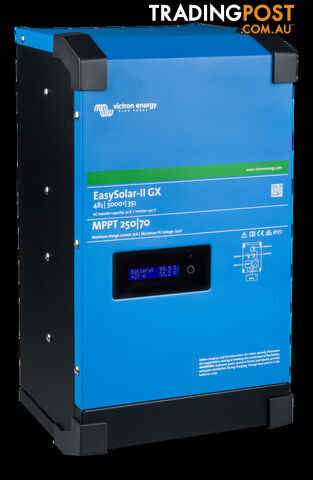

The display model is EasySolar-II GX 48V 3000VA

Specification
SKU PMP242307010

Brand Victron

GTIN 8719076049265

Product Category Solar Charge Controllers

Weight: 28 Kg

Amps: 70A

Voltage: 24V

Dimensions: 218 x 258 x 810 (D x W x H)

Operating Temperature Range: –40°C to +65°C

Charge Voltage\: 28.8V

NOTE: see full product specifications & further product info in the section on this page.

Warranty
Warranty Period: 5 Years

Warranty Details:
