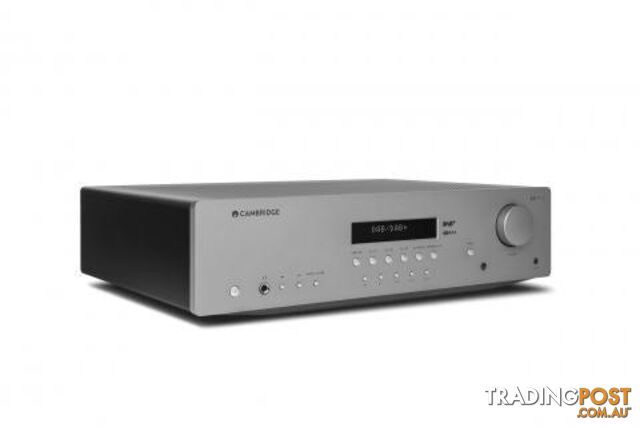

Cambridge Audio AXR100D DAB+/FM Stereo Receiver

The AXR100D DAB+/FM Stereo Receiver offers a massive 100 watts per channel, a dedicated subwoofer speaker output for improving bass and two sets of speaker outputs. It also features analogue inputs, digital inputs, a phono stage, a DAB+/FM receiver with RDS and a 3.5mm input. In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.




POWER OUTPUT

100 watts (into 8)

THD (UNWEIGHTED)



FREQUENCY RESPONSE (-1DB)

5Hz - 50kHz

S/N RATIO (REF 1W)

>82dB (unweighted)

INPUT IMPEDANCES

47k ohms

POWER AMP DAMPING FACTOR

>50

STANDBY POWER CONSUMPTION



MAX. POWER CONSUMPTION

550W

BASS/TREBLE CONTROLS

Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz

SUBWOOFER OUTPUT

200Hz 2nd order L+R Level follows volume setting

DIGITAL INPUTS

PCM 16-24bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz

DIMENSIONS

110 x 430 x 340mm (4.3 x 16.9 x 13.4)

WEIGHT

8.1kg (17.8lbs)

BLUETOOTH

5.0 A2DP/AVRCP supporting SBC

TUNER BANDS

European DAB (174.928-239.200kHz) FM (87.5-108MHz)

AERIAL INPUTS

FM/DAB+ 75 ohms, Coaxial antenna

SIGNAL TO NOISE (TUNER)

60dB typical (FM) / 90dB typical (DAB)

DISTORTION (TUNER)
