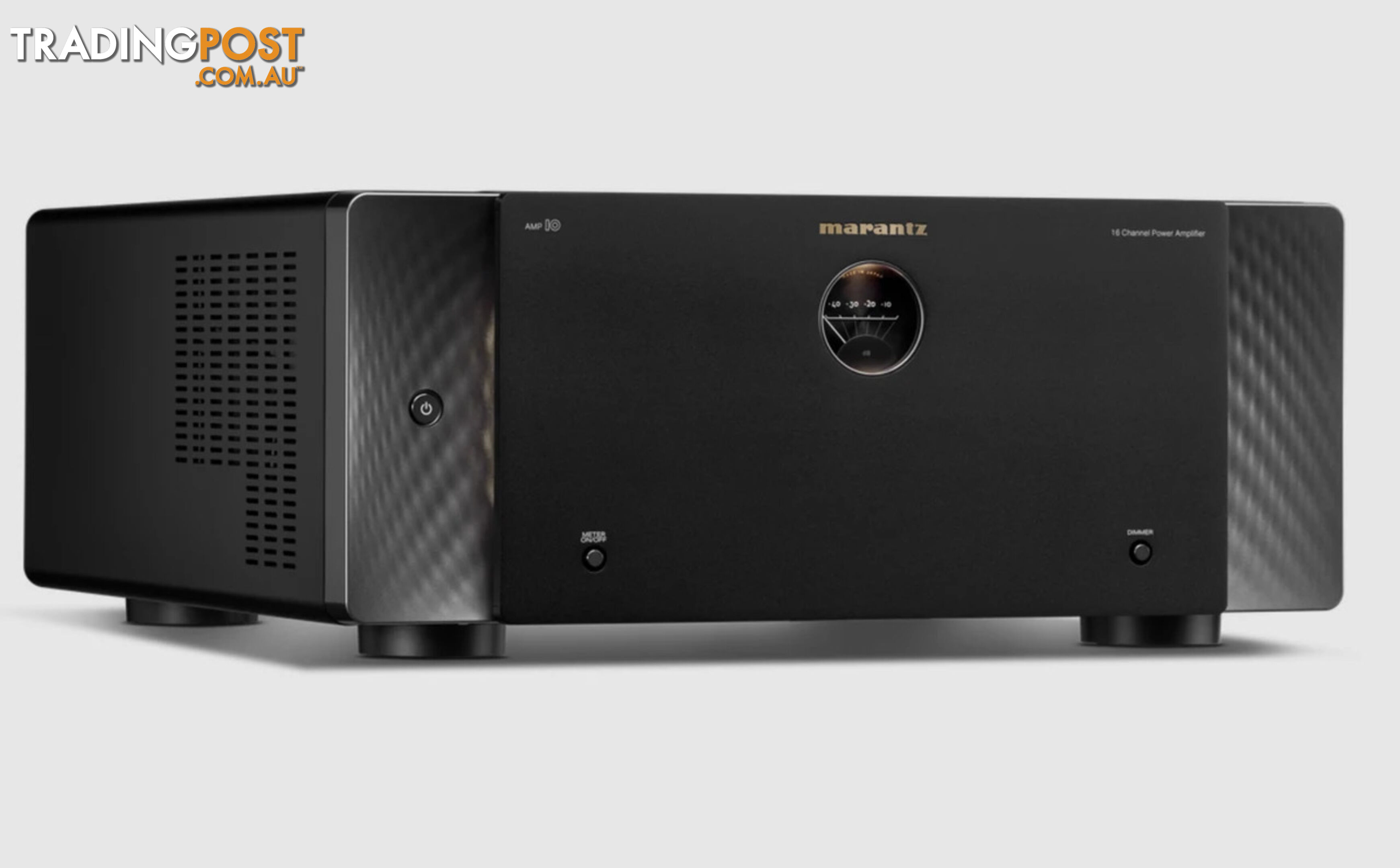

Marantz AMP 10 16-Channel Home Theatre Power Amplifier

Introducing the Marantz AMP 10

The Apex of Home Cinema

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.
Exquisite Sound

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

The Ultimate Performance

Marantz has developed custom Class D amplifiers and refined their owin HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Sound Master Tuned

The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader

AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

Technical Specifications
Multi-Room / CI

IP Control / RS232 Control / Web Control / App Control
No / Yes / No / No

IR Flasher In
Yes

Marantz Remote Bus
Yes

DC Trigger Input/ Output
1 / 1

Other Specs

Front Display
Level Meter

Firmware Update by Network / USB / RS232C
No / No / No

Auto Power off
Yes

Inputs / Outputs

Main Amplifier in
Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)

Speaker Terminal
PKT-1+

Number of Speaker Terminals
16

Bi-Amp Drive /BTL Drive
Yes / Yes

Level Meter
Yes

Chassis
Copper Plated

Number of power amps
16

Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL
200W / 400W

Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal
400W

Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal
200W

70% Guarantee(Normal/Bi-Amp/BTL)
Yes

100% Guarantee(Normal/Bi-Amp)
Yes

General

Metal Front Panel
Yes

Pre-Programmed / Learnable / LCD Display
No / No / No

Power Consumption
500 W

Standby Consumption
0.2 W

Power Consumption No-Sound (ECO on/off)
No / 140 W

Maximum Dimensions (W x D x H)
Antenna - Vertical : 44.2 x 48.77 x 18.8 cm

In the box
Main unit
quick start guide
AC cord
AMP Control cable
Remote control cable
SP Terminal Wrench



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
