Airpulse P100X Wireless Desktop Speaker System

P100X
MULTI-DRIVER WIRELESS DESKTOP SPEAKER SYSTEM
OVERVIEW

The AIRPULSE P100X is a multi-driver wireless desktop speaker system. Designer of P100X packs multiple drivers into the system, including a pair of patented A-Blade tweeters, and one proprietary 4.5-inch long-throw mid-woofer with an Aluminum diaphragm. With Qualcomm Bluetooth audio receiver and high-end digital power amplifier platform, all components are fine-tuned to work together seamlessly, housed in this well-constructed compact size cabinet with a retro appearance.

DESIGN





ELEGANT APPEARANCE

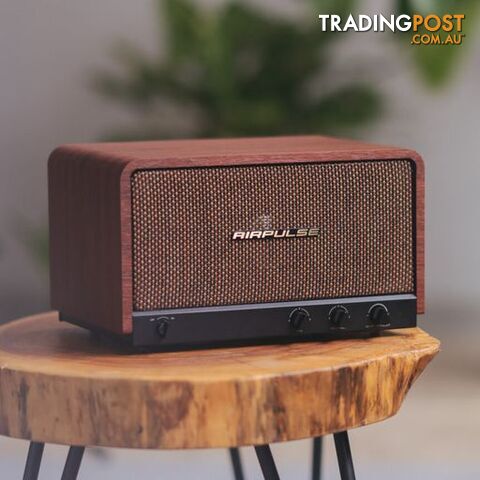

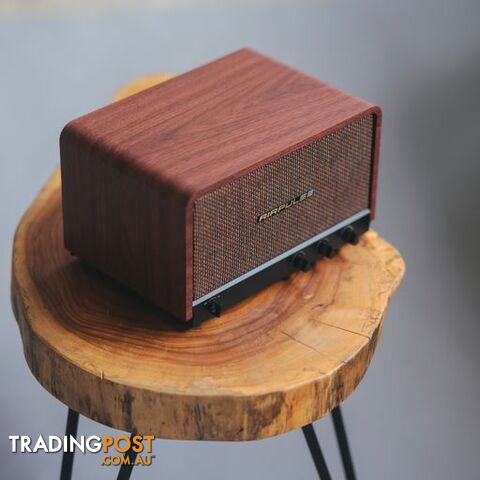

Covered with real-wood Walnut veneer, P100X's cabinet is finished with high-grade furniture paint. With exquisite craftsmanship and elegant appearance, it can easily blend into any style of home decoration.




Its all-in-one acoustic design allows unrestricted positioning. You can place it anywhere you want music to be heard.

SOUND






THE AIRPULSE A-BLADE TWEETERS

The patented A-Blade tweeters, designed by Mr. PHIL JONES, features a far more smoother frequency response and can out-perform any normal dome tweeter. The form factor of the oval-shaped diaphragm brings in special acoustic character, which helps to disperse high frequencies more efficiently. One prominent feature the A-Blade tweeters bring about is the minimum impact of speaker positioning. You can walk around while still experience the same sound effect, no need to seek the Sweetspot!

TRANSPARENT SPEAKER WIRE

The P100X uses US-made TRANSPARENT wire which is known for its high degree of accuracy and resolution. This accurate signal transmission further enhances the performance of the tweeter and mid/woofer in the system to give you a fulfilling musical experience.


4.5 INCH ALUMINUM DIAPHRAGM WITH LONG-THROW MID-WOOFER

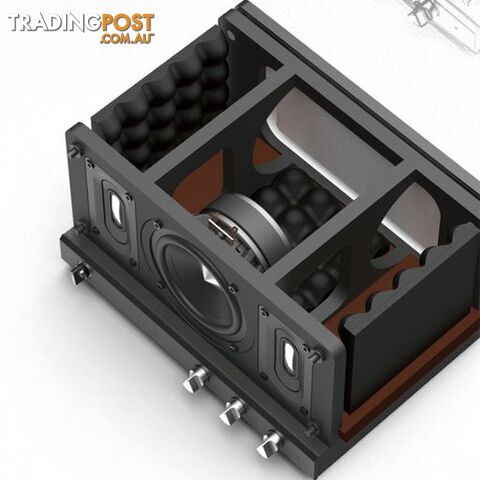

The proprietary 4.5-inch long-throw mid-woofer with an Aluminum diaphragm effectively controls sound colorization caused by diaphragm partitioning, which greatly reduces speaker coloration and it can dive-down deeply. The use of passive radiators not only enhances low frequencies but also eliminates the possible wind noise caused by the bass reflex port, to maintain the distinctive pure and natural tonal characters of the PHIL JONES design.



BLUETOOTH V5.0 WITH APTX HD

Bluetooth receiver of P100X is Qualcomm's latest V5.0 chipset QCC3031, which can support aptX HD codec, offering a lower distortion, higher resolution Bluetooth audio effect than traditional SBC codec.



ULTRA-LOW DISTORTION DIGITAL POWER AMPLIFIER SYSTEM

P100X features two pieces of TAS5805M Class D amplifier from Texas Instrument. One of the amplifiers is connected in BTL mode to drive the two Air-Blade tweeters, the other one is connected in PBTL to drive the woofer.

TAS5805M is among Texas Instrument's new line of Close-loop Class D amplifiers, featuring a digital input with up to 96KHz sample rate support, and maximum 45W output power in PBTL mode. Its 768KHz output PWM carrier frequency is ideal for rendering high-resolution sound and driving high sensitivity drivers like the Air-Blade.

TAKE CONTROL OF YOUR SOUND

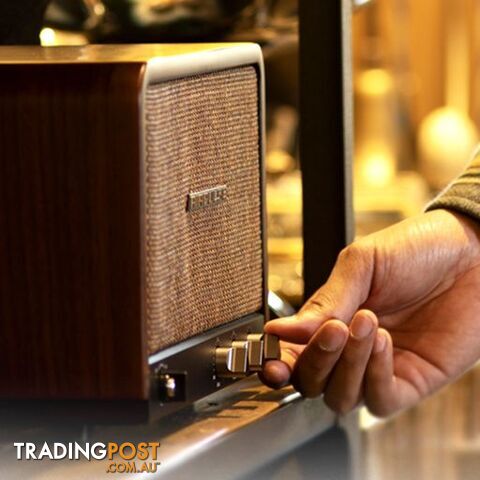

The P100X comes with a wireless remote control used for taking control of your sound. You can switch between inputs easily from the comfort of your seat.



Amplifier Power Output:

L/R(Tweeters):10W+10W, Mid-Woofer:1x40W



S/N dB(A):

L/R: 90dB(A)



Input Sensitivity:

Line in 400±50mV, Bluetooth:450±50mFFs



Frequency Response:

50Hz-20KHz



Input Mode:

Line in, Bluetooth



Cabinet Size (WxHxD):

300x179x215mm



Net Weight:

5.1kg(11.3lbs)



Packing Size(LxWxH):

387x297x270mm



Gross Weight:

6.5kg(14.4lbs).Variant: Default Title
