REL HT/1003 Subwoofer

For when there is simply neither the space nor the need for all the output of a larger HT model. HT/1003 applies the same approach as its impressive stable mate and scales it down by just a little. 10 high-powered, long throw driver and 300W means it has plenty of power on demand. This unit is intended primarily for high powered home theater applications, immersive gaming set-ups, and pairs nicely with active powered loudspeakers. Scaled down design, up-sized performance.

The cabinets width is minimized reducing visual mass, whilst depth is maximized to produce the deepest bass. We selected tough, high-grade, horizontally oriented line-grained composite to wrap the entire cabinet. Easily handled, easily cleaned. Yet, the top surface that ones eye sees is beautifully finished in 5 coats of hand rubbed lacquer, creating the visual appeal weve come to be known for.

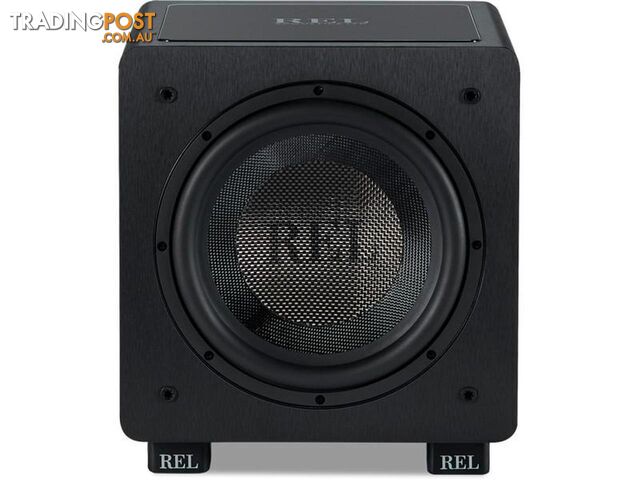

TEN-INCH CARBONGLAS DRIVER

RELs driver prowess is on full display with the HT/1003, a modern 10 CarbonGlas (250mm) driver that is both lightweight and extremely stiff. While many competitors drone along with relatively slow, heavy cones HT/1003 uses tough, stiff carbon fibre over 60% of the driven surface, backed by lightweight glasfibre. Naturally, we use true high quality natural butyl surrounds as they remain soft and pliable for decadessomething REL owners have come to expect. We believe the new 10 CarbonGlas driver sets a new standard for affordable, high performance theater-specific drivers.

PUNCHING BEYOND ITS WEIGHT CLASS

300 Watts: To accomplish our single-minded goal of exceedingly high output for large-scale theater in a such a compact footprint requires a special amplifier. Our NextGen5 Class D amplifier frees up interior space whilst running cool; this results in more cabinet volume and that translates into ultra-deep bass despite its modest footprint. 300 watts means the driver is never starving for power ensuring high output, delivered effortlessly in a long running, reliable design. Within HT/1003s input filter, we designed specific inverse filtering to permit our CarbonGlas driver to extend much deeper than conventional designs.

ZERO COMPRESSION WIRELESS COMPATABLE

There is wireless and there is REL wireless. We are well-known for having the finest wireless purpose-built systems in the component audio world. Though HT-Air is affordable, it retains our corporate fixation on zero compression and maximum dynamics. HT-Air is designed to leave old fashioned Bluetooth-based systems in the dust, delivery latency in the 16-20 millisecond range. This permits owners to place their HT model wherever it works best for you without resorting to unsightly cables being strewn across the landscape of your living room.

The wireless transmitter is optional and not included with this subwoofer.

:
TYPE

Closed box, front-firing driver

ACTIVE DRIVER SIZE & MATERIAL

10 in., 250mm long-throw, CarbonGlas cone structure, inverted carbon fibre dust cap, steel chassis

PASSIVE RADIATOR SIZE & MATERIAL

NA

LOW FREQUENCY EXTENTION

-6dB at 24 Hz

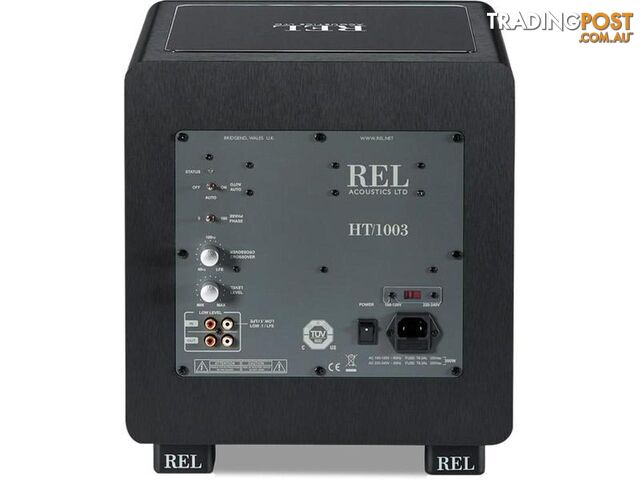

INPUT CONNECTORS

Dual purpose Low Level stereo RCA or LFE RCA

OUTPUT CONNECTORS

Daisy Chain Low Level stereo RCA or LFE RCA

POWER OUTPUT

300 watts (RMS)

AMPLIFIER TYPE

NextGen5 Class D

WIRELESS CAPABILITY

HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip

PROTECTION SYSTEM
FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

6.3 Amp semi delay 230 or 115 volts operation

DIMENSIONS
W X H X D

12.5 x 13.7 x 13.8 in. (318 x 347 x 351 mm)

NET WEIGHT

28 lbs. (12.7 kg)

FINISH

Line Grained Black Composite

SUPPLIED ACCESSORIES
MAINS LEAD

Yes

NEUTRIK SPEAKON

NA

INTERCONNECT

No

USERS MANUAL

Yes.Variant: Default Title
