Elac Uni-Fi 2.0 UC52 Centre Channel Speaker

THE CENTRE OF ATTENTION


The center channel is the most critical speaker in a surround sound system. The UC52s concentric driver provides the perfect solution for a compelling home theater experience. Using the same outstanding drivers and technology as the series other models ensures this compact, 3-way, bass-reflex center speaker delivers a matched sonic signature.

PRODUCT

Speaker type: 3-way, bass reflex
Tweeter: 1 x 1-inch soft dome, concentrically mounted
Midrange: 1 x 4-inch aluminum cone
Woofer: 2 x 5.25-inch aluminum cone
Crossover frequency: 200 / 2,000 Hz
Frequency response: 48 to 35,000 Hz
Sensitivity: 85 dB at 2.83 v/1m
Recommended amplifier power: 40 to 140 wpc
Peak power handling: 140 wpc
Nominal impedance: 6
Binding posts: 5-way custom
Magnetic shielding: No
Cabinet finishes: Black ash vinyl
Accessories included: Fabric grille
Height:  7.28
Width:  24.42
Depth: 10.83

3-WAY SPEAKER DESIGN

With separate tweeter, mid-range and bass drivers the Uni-Fi UB52 delivers clean bass without distorting vocals.

NEWLY DEVELOPED CONCENTRIC DRIVER

A new wide-surround tweeter enhances its low and high frequency extension allowing for improved blending with the midrange driver. An entirely new mid-range design features a larger diameter voice coil, new aluminum cone profile, new low-profile surround, and an all-new neodymium magnet assembly.

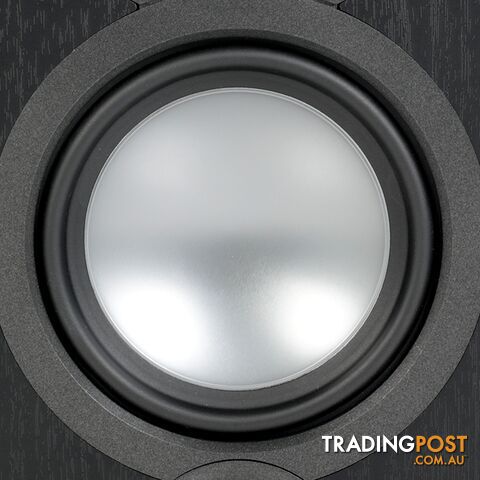

NEW SINGLE PIECE WOOFER

A newly developed single piece aluminum dished cone results in improved stiffness. Combined with an oversized magnet, large diameter voice coil, and extended pole piece, these changes result in improved accuracy and bass dynamics.

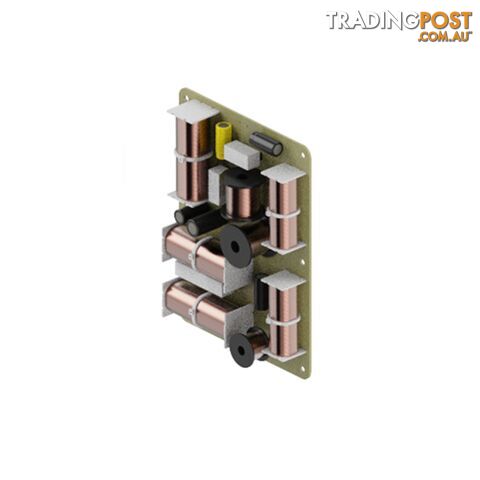

SOPHISTICATED 3-WAY CROSSOVER

An enhanced design improves response linearity, improves driver integration and delivers a true 6-ohm nominal impedance for compatibility with virtually all AV receivers.

ENHANCED BRACING

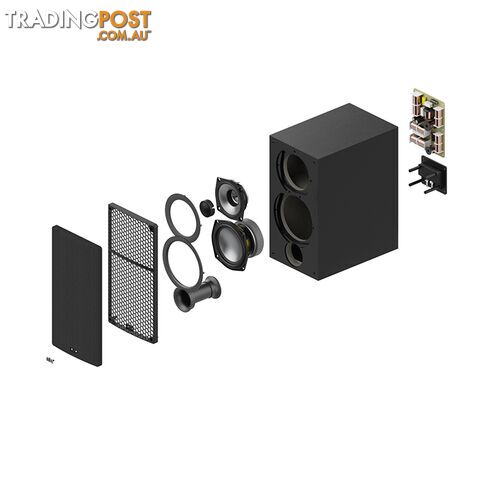

Every Uni-Fi 2.0 enclosure is engineered with thick MDF outer walls and a luxurious black ash vinyl finish. Specially located internal bracing adds stiffness and strength to the cabinets outer walls, reducing the cabinet vibration that causes unwanted coloration.

FRONT FIRING VENTS (UB52-BK AND UC52-BK ONLY)

Relocating the vents to the front on the bookshelf and center speakers allows for greater freedom of placement, even in restricted places like a cabinet or up close to a wall..Variant: Default Title
