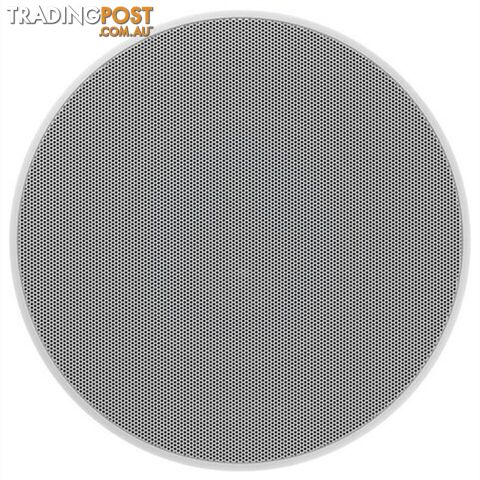

B&W CCM664 In-Ceiling Speakers (Pair)

The CCM664 features an adjustable, tilt-offset 25mm (1in) soft dome tweeter, and a 150mm (6in) woven glassfibre bass/midrange driver. Quick and easy to install, the speaker also incorporates a three-position EQ switch for a better off-axis response. A cost-effective route to high quality ceiling mount sound.


Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 45Hz 35kHz
Recommended Amp Power 25 130w
Sensitivity SPL (2.83V, 1m) 87dB
Impedance Nominal (min) 8 (4.5)
Frame diameter 240mm (9.5in)
Cut-out diameter 202mm (8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C6
Back Box 6C.Variant: Default Title
