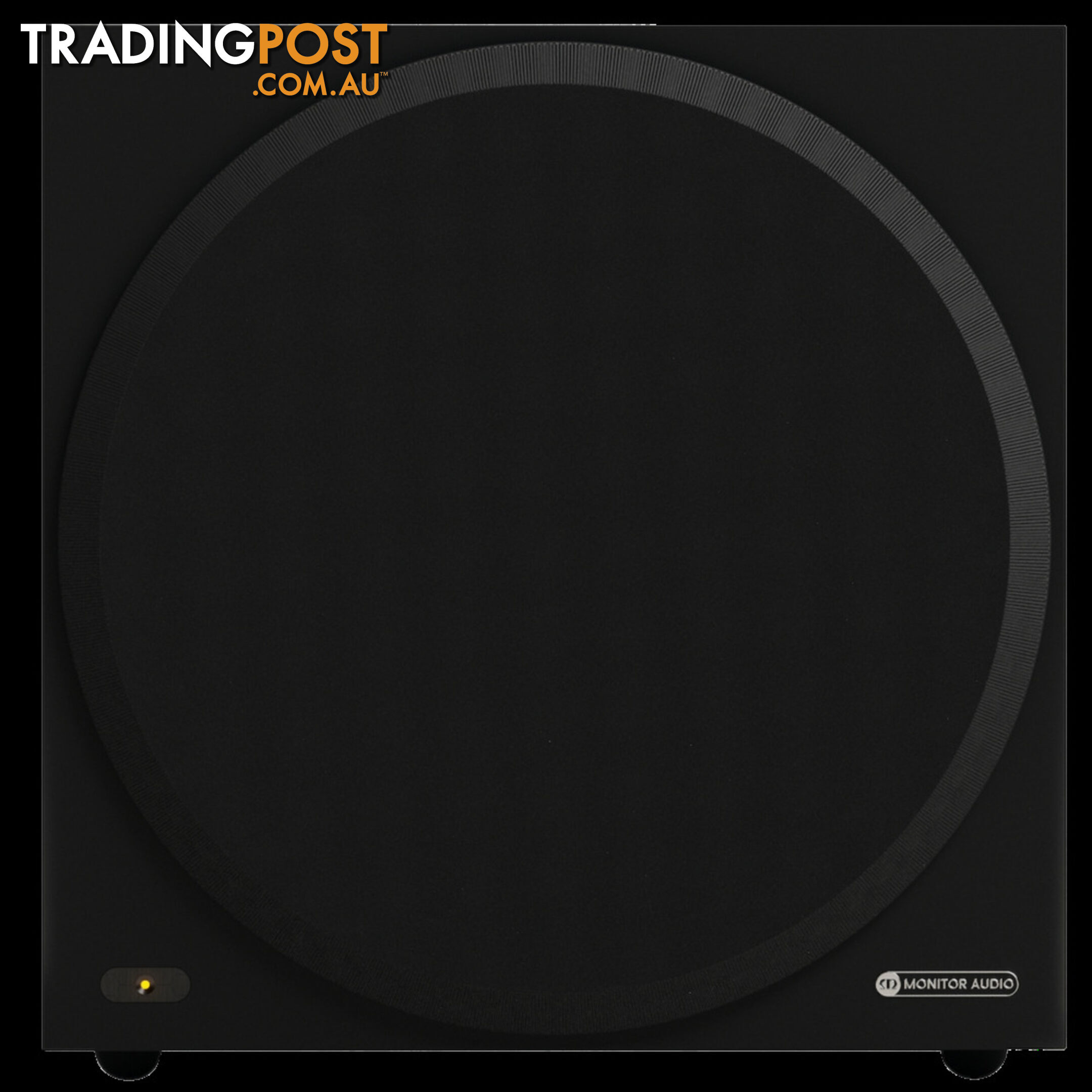

Monitor Audio Vestra W12 Subwoofer

Introducing the Vestra W12 Subwoofer

FOR OURE, UNADULTERATED PERFORMANCE

Vestra continues the mantle of confident design simplicity. The careful combination of high-quality materials, thoughtful design and user-friendly features embodies the ethos, creating a subwoofer that is both visually refined and sonically powerful.

C-CAM for pistonic-performance

C-CAM is a lightweight yet incredibly rigid cone that minimises flexing, allowing for a faster response time and improved accuracy. Fronting a powerful motor system, the Vestra C-CAM bass driver delivers exceptional clarity and low distortion, allowing for the accurate reproduction of deep, controlled bass.

Vestra, ideal for multi-subwoofer AV Systems

Vestra subwoofers are perfect for multi-sub AV systems, delivering balanced, immersive sound with smooth, room-filling bass and no dead spots. Compact and stylish with DSP tuning, they blend easily into any space, creating a cinematic experience with deep, powerful bass, ideal for movies, music, and games.

Delivering optimal performance: the strength within

Vestra cabinets combine a sleek minimalist design with acoustic precision. Rigid construction minimises resonance for clean, powerful bass. Vestra W10 and W12 feature sealed enclosures for flexible placement, while the Vestra W15s ported design delivers deeper, harder-hitting lows. Finished in AV-friendly matte black or white finishes, Vestra is durable, stylish, and sonically impressive.

Class-D Amplification: Power, precision and efficiency

Behind the high-linear C-CAM driver, are powerful Class-D amplifiers (250W500W) deliver optimised, pistonic performance with high efficiency and low distortion at any volume.

Performance-driven bass for every listener

The Vestra W12 subwoofer delivers a potent combination of power, precision, and seamless design. Utilising Clever DSP (Digital Signal Processing) enhances customisation, allowing you to fine-tune the bass response to your space.

The Vestra W12s sealed-enclosure design houses a 12-inch C-CAM (Ceramic-Coated Aluminium Magnesium) high linear-excursion driver featuring triple-layer suspension for greater control and ensuring precise, powerful bass with minimal distortion. Supported by a robust 500-watt Class-D amplifier and a rigid, acoustically optimised enclosure, the W12 delivers deep, impactful lows that remain clear and controlled at all listening levels.

Product Features
High linear-excursion C-CAM (Ceramic Coated aluminium Magnesium) driver
Triple suspension driver
500-Watt Class-D Amplifier
Sealed-Enclosure
Three EQ pre-set modes
Stereo unbalanced RCA inputs
LFE unbalanced RCA inputs
12 Volt trigger
3.5mm mono jack

Technical Specifications

System Format
Active

Frequency Response (In-room, -6dB)
17 200 Hz

Maximum Usable SPL - Peak (CTA 2010-B, Z-weighted, half-space)
115 dB

Amplifier Output Instantaneous (RMS)
500 W

Amplifier Classification
High-Efficiency Class-D

Bass Alignment
Sealed

Low Pass Filter Frequency (-6dB)
32 200 Hz

Inputs
Stereo Unbalanced RCA
LFE Unbalanced RCA
12 V Trigger 3.5 mm mono jack

Input Impedance
47 kOhms

Phase Control
0° & 180° Toggle Switch

Equalisation DSP
3 pre-set modes: Impact, Movie, Music

Auto Music Sensing
Auto On: Line Level >3 mV
Auto Standby after 20 mins

Mains Input Voltage
Universal Mains, 85265 VAC, 5060 Hz

Power Consumption (1/8th Maximum Output)
120 W

Drive Unit Complement
1 × 12" (305 mm) High Linear-Excursion Driver

External Dimensions with all accessories fitted (H × W × D)
385 × 371 × 401 mm

Grille
Cloth covered



*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice.

E&OE
