Audio Technica AT-OC9XEB Moving Coil Phono Cartridge

AT-OC9XEB
MOVING COIL PHONO CARTRIDGE

The AT-OC9XEB is a premium moving coil phono cartridge with a 0.3 x 0.7 mil Elliptical Bonded stylus.

The OC9X range features a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy. This improved channel separation results in a more precise stereo image and wider frequency response. The moving coil wires in all OC9X Series cartridges are made from PCOCC (Pure Copper by Ohno Continuous Casting), for optimum signal purity.

The AT-OC9XEBs transducer engine is mounted onto a rigid aluminium body to help reduce unwanted internal vibrations and maintain sonic clarity. The cartridge bodies are pre-threaded, enabling them to be easily mounted to a headshell or tonearm with just two screws (no mounting nuts for the screws are required). Each OC9X Series cartridge is supplied with mounting hardware, a stylus brush and other accessories.

0.3 x 0.7 mil Elliptical Bonded stylus
 Made from PCOCC (Pure Copper by Ohno Continuous for optimum signal purity
 Aluminium body and cantilever to help reduce unwanted vibrations and maintain sonic clarity
 Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws no nuts required

Type

Dual Moving Coil

Body Material

Aluminium

Mounting Feature

Threaded inserts

Frequency Response

20 to 30,000 Hz

Channel Separation

25 dB (1 kHz)

Output Channel Balance

1.5 dB (1 kHz)

Output Voltage

0.32 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle

20 degrees

Vertical Tracking Force Range

1.8 to 2.2 g (standard 2.0 g)

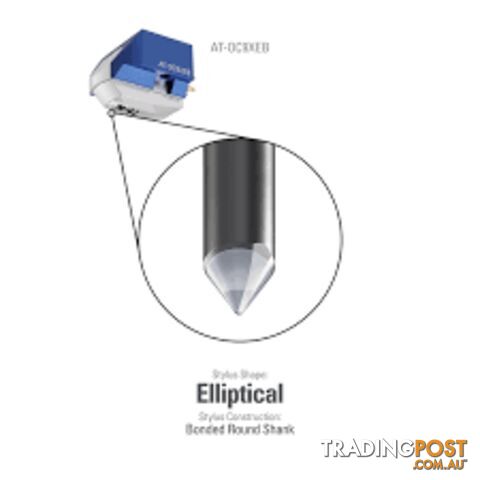

Stylus Shape

Elliptical Bonded

Stylus Curvature Radius

0.3 x 0.7 mil

Stylus Construction

Bonded round shank

Cantilever

Aluminium pipe

Static Compliance

20 x 10 ^(6) cm / dyne

Dynamic Compliance

9 x 10 ^(6) cm / dyne (100 Hz)

Wire Used for Coil

PCOCC

Terminal Pins

Brass

Recommended Load Impedance

Min 100 Ohm

Coil Impedance

12 Ohm

DC Resistance

12 uH (1kHz)

Cartridge Weight

7.6 g

Dimensions

17.3 (H) x 16.8 (W) x 25.7 (L) mm

Mounting

1/2 centers

Accessories Included

1 non-magnetic screw driver; 1 brush; 2 washers; 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm; 1 plastic protector
