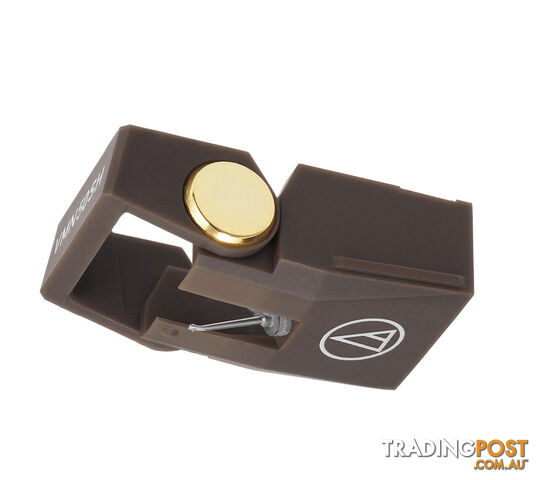

Audio Technica AT-VMN50SH Shibata Replacement Stylus
Parts and Accessories$1,620$185 more
Ortofon 2M Black LVB 250 Moving Magnet Cartridge - Limited Edition
Parts and Accessories$655$780 less

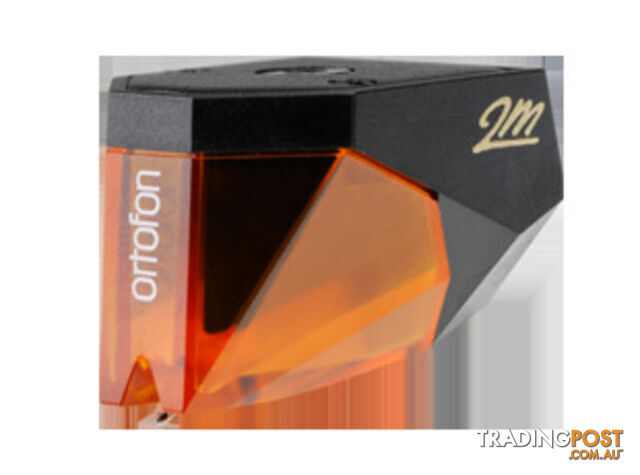

Ortofon 2M Bronze MM Phono Cartridge
Parts and Accessories$1,619$184 more

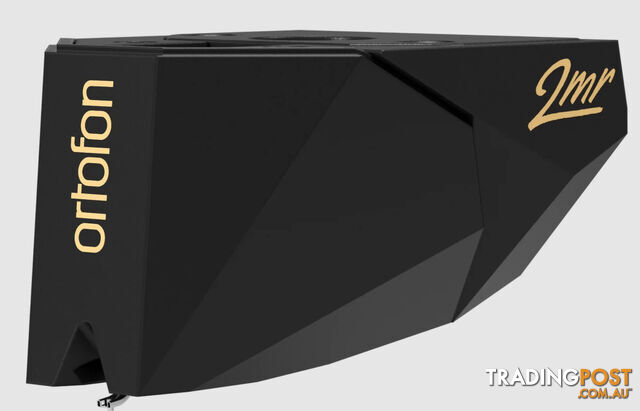

Ortofon 2MR Black LVB 250 (suits Rega turntables) Cartridge
Parts and Accessories$1,099$336 less

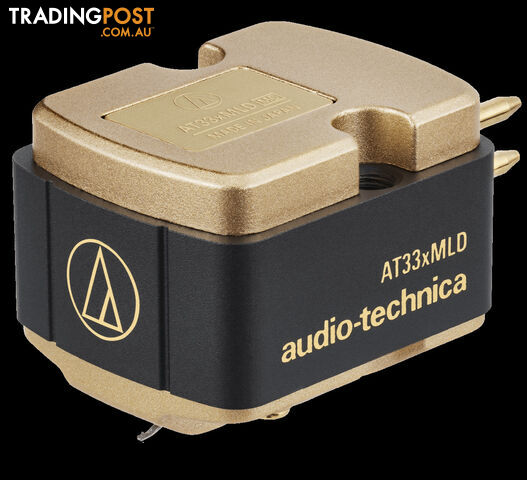

Audio Technica AT33xMLD Dual Moving Coil Stereo Cartridge
$1,435
Verified seller
Description
SPU Mono GM MKII
The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Technical Specifications
Output voltage at 1000 Hz, 5cm/sec. - 3 mV
Frequency response - 20-15.000 Hz + 2/- 1 dB
Tracking ability at 315Hz at recommended tracking force *) > 70 µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Spherical
Stylus tip radius - R 25 µm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 3.5 g (35 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 100 ohm
Recommended load impedance - 47 kohm
*) Typical value
Cartridge body material - Ground wood and resin composite
Coil wire material - High Purity Copper (OFC)
Cartridge colour - Shiny black
Cartridge weight - 30 g
* Reprint from Manufacturers website
The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Technical Specifications
Output voltage at 1000 Hz, 5cm/sec. - 3 mV
Frequency response - 20-15.000 Hz + 2/- 1 dB
Tracking ability at 315Hz at recommended tracking force *) > 70 µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Spherical
Stylus tip radius - R 25 µm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 3.5 g (35 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 100 ohm
Recommended load impedance - 47 kohm
*) Typical value
Cartridge body material - Ground wood and resin composite
Coil wire material - High Purity Copper (OFC)
Cartridge colour - Shiny black
Cartridge weight - 30 g
* Reprint from Manufacturers website
