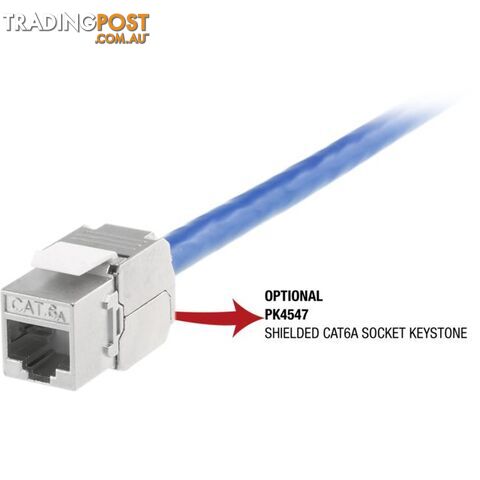

SSTPCAT6BL-1M SSTP CAT6 SOLID BLUE -1M SHIELDED - PER METRE (305M)


$2.45
Verified seller
Description
THIS ITEM IS SOLD PER "METRE"
If you order 5, you will get five metres.
NEED A LONGER LENGTH?
This cable is also available as a 305 m roll.
S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk.
SPECIFICATIONS
Conductor
Insulation:
Material: FO-PE and HD-PE
Diameter: 1.30 ± 0.02mm
Thickness: 0.37 ± 0.01mm
Colours (per pair):
Blue - Blue/White
Orange - Orange/White
Brown - Brown/White
Green - Green/White
Conductor:
Material: Bare Copper
Diameter: 1/0.571 ± 0.01mm
Sheilding
Outer Braid (loose): 16Ã4Ã1/0.12mm
Aluminium Foil (per pair): 0.065Ã13mm
Jacket Insulation
Colour: Blue
Material: LSOH
Diameter: 7.6 ± 0.01mm
Thickness: 0.6 ± 0.02mm
Tensile strength (minimum): 0.917Kg/mm2
Electrical Characteristics:
Conductor Resistance (max): 9.38 Ω/100m at 20°C
Resistance Unbalance (max): 5%
Capacitance Unbalance (max): 330pF/100m
Mutual Capacitance (max): 560pF/100m
IMAGES
Weight: 0.0720 kg
Barcode Number: 9328202014382
