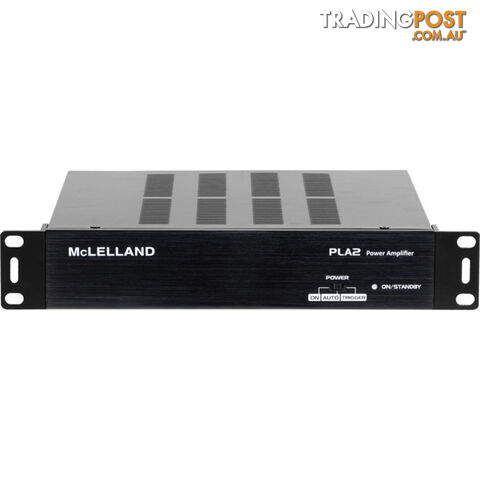

PLA2 120W POWER AMPLIFIER COMPACT 100V OR 8OHM SPK

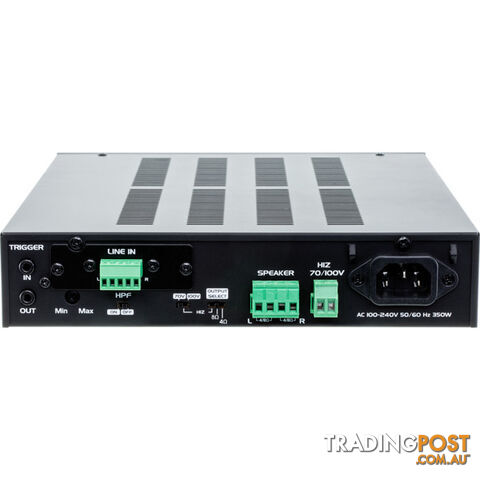

FEATURES It used 9.5 inches special tiny design. Two Channels Model ? 120W RMS/Per channel. Stereo into 4-8 Ohm loads. Bridged mode 240W output for 70V or 100V (Direct Drive) Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of 90dB @ 1W(20 Hz - 20 kHz) Input Sensitivity1.0V ( 0dBu) @ Max Output 4O Gain Value ?25 dB @ 4O Input Impedance >10k, Balanced. Maximum Input Level 12.3 V ( 24 dBu) Trigger In/Out DC 12V High Pass Filter 80 Hz(±2dB) Input Connector 5 pin Euro terminal Trigger Connectors 3.5 mm Jacks Output Connectors 4 pin Euro terminal (4O/8O) Dimensions 214mm(W) x 249.8mm(D) x 44mm(H) Net Weight 1.94 Kg Power Requirements 100 - 240 VAC, 50 - 60 Hz, 350W PLA2 manual PDF file Weight: 3.00 kg Barcode Number: 9328202033727
