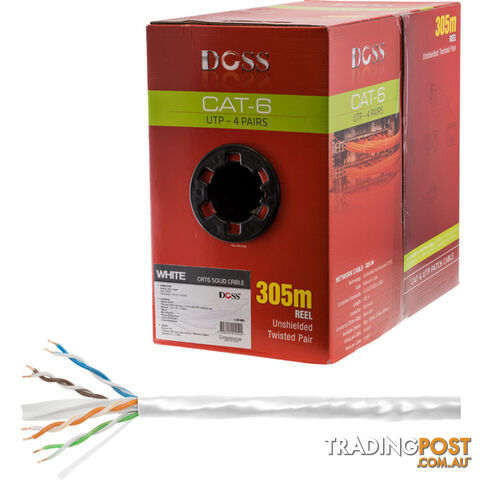

C6RWHT 305M CAT6 SOLID CABLE WHITE SOLD AS ROLL ONLY

This is the roll code. If buying by metre please click here Cat-6 cable for the installation of premises wiring. Four 23AWG twisted solid copper pairs suitable for IDC terminations on patch panels and wall jacks. Pairs are separated by a PVC spline which maintains cable geometry and separation between pairs. FEATURES Conductor Material: Bare Copper Size 23 AWG Construction 1/0.58 +/- 0.02mm PVC spline separates pairs and maintains cable geometry Colour: White TEST RESULTS 4PRCAT6 Test Results pdf; 1.06MB SPECIFICATIONS INSULATION MATERIAL HDPE Thickness Minimum at any point: 0.2mm Maximum Average: 0.248 Diameter 1.08 +/- 0.2mm Colours Blue + White-Blue Orange + White-Orange Green + White-Green Brown + White-Brown Elongation Minimum 300% Tensile Strength Minimum 1.682 Kg/mm sq SHEATH MATERIAL PVC Colour: White Thickness: Minimum at any point: 0.46mm Maximum Average: 0.58mm Diameter 6.4 +/- 0.3mm Elongation: Minimum 100% Tensile Strength: Minimum 1.407 Kg/mm sq Aging @ 100 deg C for 168 Hours: Minimum elongation retention: 50% Minimum tensile strength retention: 75% Marking N692 Flame Test Meets AS/ACIF S008:2001 Pair Separator Separate "+" Moulding Barcode Number: 9328202001481
