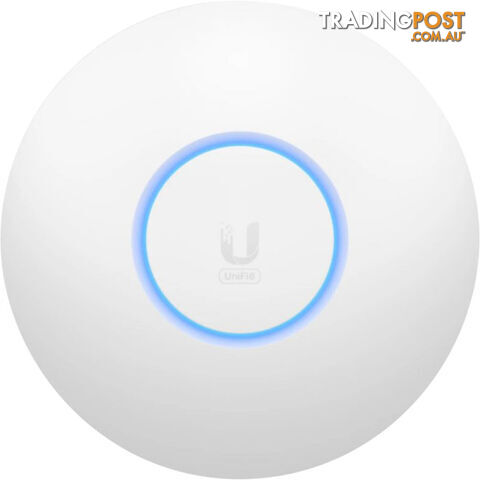

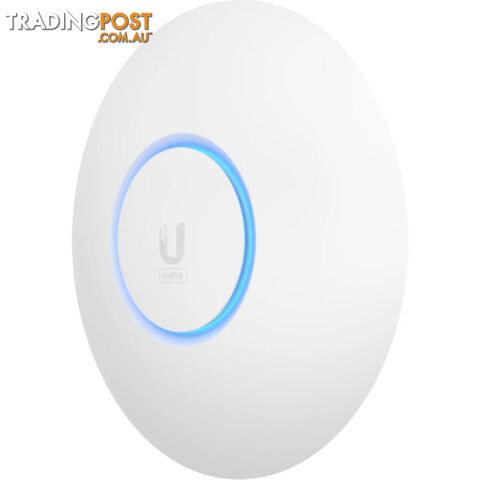

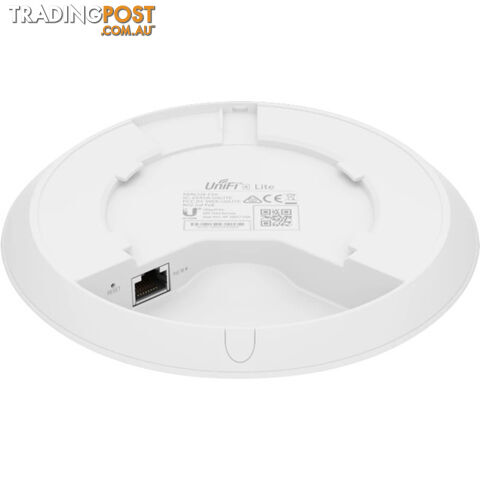

U6-LITE WIFI 6 DUAL BAND ACCESS POINT UNIFI

UNIFI WI-FI 6 LITE DUAL BAND AP 2X2 HIGH-EFFICENCY WI-FI6 **NO POE INJECTOR INCLUDED** Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compactdesign for low-profile mounting. UniFi 6 Lite is a 2x2 Wi-Fi6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact andnano-sized design, so it can use nanoHD covers and mounting accessories. FEATURES 2x2 high-efficiency Wi-Fi 6 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps Gigabit Ethernet, powered with 802.3af PoE (PoE injector Sold Separately Compatible with UAP-nanoHD covers and recessed mounting bracket Managed by UniFi Network Controller version: 5.14.3 or higher SPECIFICATIONS MECHANICAL Dimensions Ø160 x 32.65 mm (Ø6.3 x 1.3") Weight Without Mount: 300 g (10.6 oz) With Mount: 315 g (11.1 oz) Enclosure Characteristics Polycarbonate 110 and ADC12 Die Casting Mounting Characteristics Polycarbonate, SGCC Steel HARDWARE Processor Specs 880 MHz MIPS 1004 KEc Memory Information 256 MB Management Interface Ethernet In-Band Networking Interface (1) 10/100/1000 Mbps Ethernet RJ45 Buttons Factory Reset LEDs White/Blue Power Method 802.3af PoE, Passive PoE (48V) Power Supply 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included) Supported Voltage Range 44 to 57VDC Max. Power Consumption 12W Max. TX Power 2.4GHz 5GHz 23 dBm 23 dBm MIMO 2.4GHz 5GHz 2 x 2 2 x 2 Throughput Speeds 2.4GHz 5GHz 300 Mbps 1201 Mbps Antenna Gain 2.4GHz 5GHz 2.8 dBi 3 dBi Operating Temperature -30 to 60°C (-22 to 140° F) Operating Humidity 5 - 95% Noncondensing Certifications CE, FCC, IC SOFTWARE Wi-Fi Standards 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions BSSID 8 per Radio VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Trafc Isolation Supported Concurrent Clients 300 SUPPORTED DATA RATES (MBPS) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (Wi-Fi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11ac (Wi-Fi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11ax (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) Pack Includes: 1 x UniFi U6-LITE 1 x Mounting Plate 1 x Ceiling Backing Plate 4 x Plate Ceiling Screws 4 x Wall Screws 4 x Keps Nuts 4 x Screw Anchors Quick Start Guide *PoE NOT Included. Sold Separately here. Installation Guide PDF file Weight: 0.6000 kg Barcode Number: 810010073341
