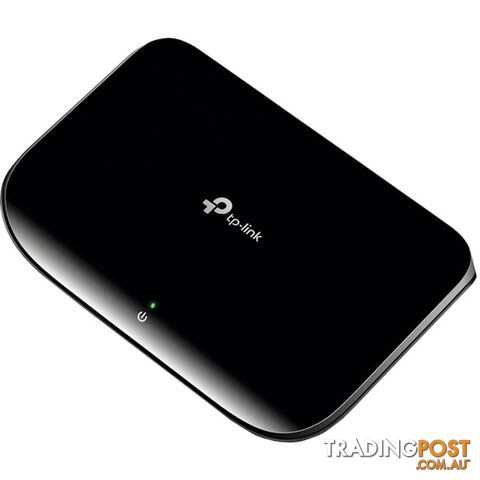

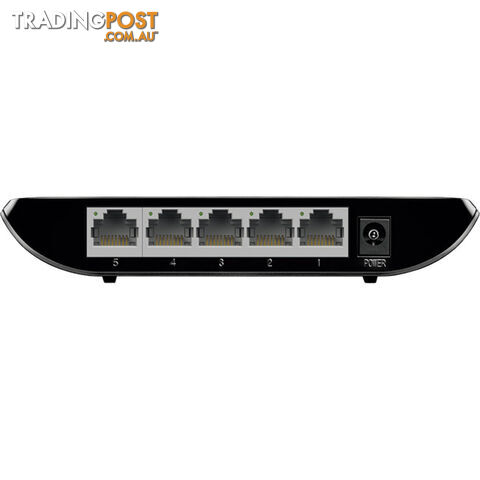

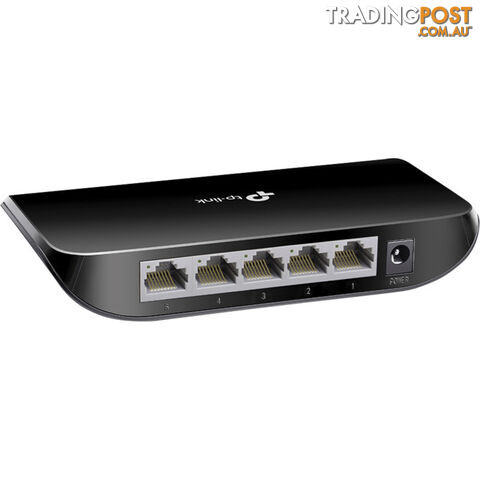

TLSG1005D 5 PORT ETHERNET GIGABIT SWITCH WITH 10/100/1000M MINI DESKTOP




+1 photo$22
Verified seller
Description
5-PORT 10/100/1000M GIGABIT ETHERNET DESKTOP SWITCH - TP-LINK
Green Ethernet technology, saves power and cost. 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto-MDI/MDIX)
The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamlessand standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have tomove large files across the network almost instantly.
TL-SG1005D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budgetpower output for different cable length. With Green Ethernettechnology, TL-SG1005D can help you save power and network cost.
FEATURES:
Adopts Green Ethernet technology, saving power and cost
Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Supports MAC address auto-learning and auto-aging
Plastic case, desktop or wall-mounting design
External power adapter supply
SPECIFICATIONS:
Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab,802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control forFull-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 10Gbps
MAC Address Table
 1k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports
 5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100à STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100à STP (maximum 100m)
 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
 Power, Link/Act (100M, 1000M)
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 6.5*4.3*1.1 in. (165*108*28mm)
Environment
 Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
 Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter (Output: 9VDC / 0.6A)
Weight: 0.4200 kg
Barcode Number: 6935364091798
$22
