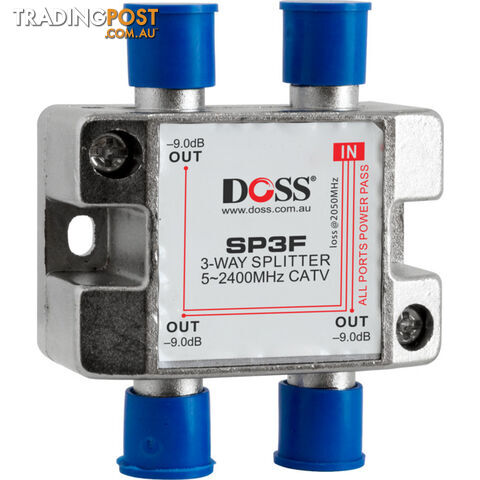

SP3F 3 WAY 'F' SPLITTER OR COMBINER DC PASS THROUGH 2.4GHZ DOSS

$10
Verified seller
Description
High quality satellite & cable TV compatible 75ohm splitters in zinc diecast housing.
""F"" type connections designedto operate from 2GHz down to 5 MHz permitting use in interactive systems
Nickel plated zinc die-cast housings
Tongue & groove housing design provides high RFI shielding for ?120 dB
Frequency response of 5-2400 MHz
High precision machine threaded F-ports
Power pass 12 V DC, 500 mA all ports
Usable for special channels and return channels
Impedance: 75Ω
For both VHF and UHF frequencies
Built in grounding block
No IR passing
Can be used to combine
Output dB loss was tested @ 2050mHZ
  SP2F SP3F SP4F SP6F SP8F
  2-WAY 3-WAY 4-WAY 6-WAY 8-WAY
 Frequency Range (MHz) Nominal
(dB) Nominal
(dB) Nominal
(dB) Nominal
(dB) Nominal
(dB)
Insertion Loss
5 - 40
4.5
6.9
8.0
12.5
13.5
40 - 1000
4.5
7.0
8.5
13.6
13.6
1000 - 1750
5.5
8.5
9.8
14.7
16.0
1750 - 2300
7.2
11.0
12.6
16.5
18.0
Â
Isolation
5 - 40
14
18
20
20
20
40 - 1000
20
21
22
22
20
1000 - 2300
20
22
21
21
22
Â
Return Loss
5 - 40
14
12
12
9
9
40 - 1000
13
16
14
13
13
1000 - 2050
15
14
13
13
13
2050 - 2300
12
12
12
12
12
Note:
Doss splitters will also function as combiners.
When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc.
It is also recommended that if you also have an antenna connected to the system, you use a Digiair Pro when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.
Weight: 0.1010 kg
Barcode Number: 9328202020826
