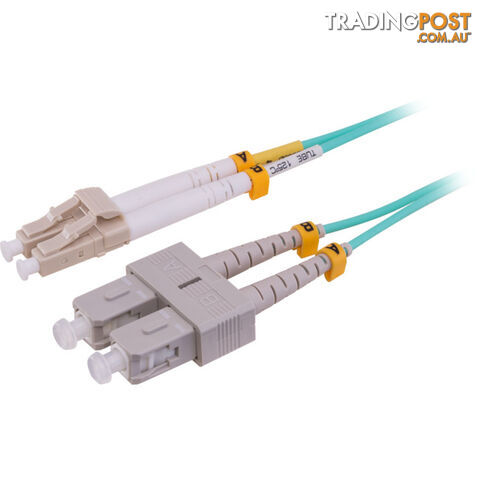

FP7759 20M FIBRE PATCH LEAD LC-SC OD 2.0MM DUPLEX 50/125 ( OM3 )

$39.95
Verified seller
Description
Pro2 fibre patch leads ensure the performance and reliability of servers, storage, and network switches and are built using the highest-quality fibre cable and connectors.
Product Brief
OM3 laser-optimized multi-mode fibre (LOMMF) cables support 10 Gigabit high speed network applications and offercomplete backward compatibility with existing 50/125 OM2 cabling systems.
Our OM3 50/125 fibre patch cables feature a flame retardant LSZH (Low Smoke, Zero Halogen) cable jacket to ensure minimal toxic and corrosive gas emissions in the event of a fire, making them compatible with most data centre requirements and critical area applications.
OM3 cables support 10Gb transfer speeds up to 300 metres and also support 1Gb up to 550 metres, 40Gb up to 100 metresand 100Gb up to 100 metres. Each cable is 100% optically tested and supplied with its own individual insertion loss test report for maximum performance and reliability.
Features
Aqua 50/125 OM3 laser-optimized fibre cable with LSZH jacket
Backward compatible with 50/125 OM2 fibre
Supports 1Gb Ethernet up to 550 metres
Supports 10Gb Ethernet up to 300 metres
Supports 40Gb and 100Gb up to 100 metres
Full support for LED & VCSEL light sources @ 850nm& 1300nm
Bandwidth: 2000/500 MHz-km @ 850//1300 nm
Typical insertion loss 35dB
Lifetime warranty
Â
Applications:
Gigabit Ethernet
Active Device Termination
Premise Installations
Telecommunication Networks
Multimedia
Fibre-Connection Types
LC- The LC connector features a small form factor and resembles the SC connector.
SC- The SC connector has a molded, plastic plug casing and a push/pull locking system.
ST- The ST connector uses a push-and-turn-to-lock system.
MTRJ-The MTRJ connector is a small form-factor connector with a square plastic casing that contains both fibre strands into a single polymer ferrule.
Â
Weight: 0.0190 kg
Barcode Number: 9328202025029
