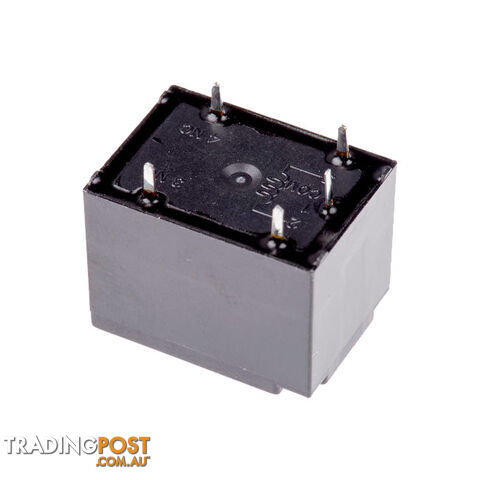

RWSH105D 5V DC 10A SUB-MINIATURE RELAY



$2.59
Verified seller
Description
5V DC 10A SUB- MINIATURE RELAY
Subminiature relay with low profile package and lightweight, suited for a wide range of consumer equipment, industrial machines & automotive applications.
Application : Domestic Appliances, Office Machines, AudioEquipment, Coffee-Pots, Control units, etc.
FEATURES:
RW Series Relay covers switching capacity by 10A is spite of miniature size to comply with userâs wide selection.
RWH is approved C-UL & TÃV safety standard.
The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
Complete protective construction is designed form dust and soldering flux. The plastic sealed type is available for washing procedure.
12A at 120VAC for RW & 12A at 240VAC for RWH are UL approved.
SPECIFICATIONS:
Nominal Load (Resistive Load CosÏ=1)
Contact Capacity:
RW
12A at 120VAC.(UL)
10A at 120VAC.
10A at 24VDC.
RWH
12A at 250VAC.(UL)
10A at 277VAC(TUV)
TV-5 at 120VDC.
15A at 24VDC.
Rated Carrying Current........RW: 10A & RWH: 15A.
Max. Allowable Current .......RW: 10A & RWH: 15A.
Max. Allowable Voltage ........AC 240V, DC 110V.
Max. Allowable Power Force.
RW: 1500 VA, 240W.
RWH: 1800VA, 360W.
Min. Switching Load
RW: DC 5V, 10mA.
RWH: DC5V, 15mA.
Contact Material
RW: Ag Alloy.
RWH: AgSnO2.

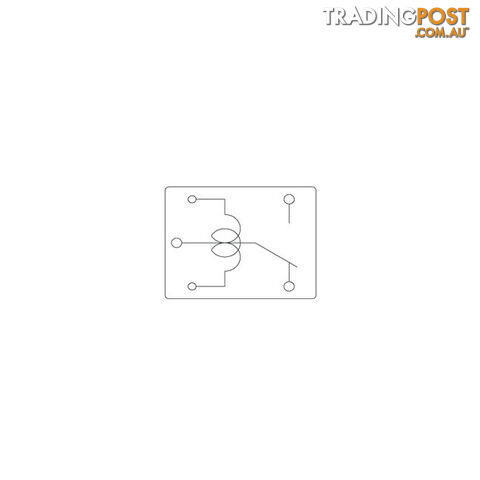

Contact Form..........................SPST & SPDT.
Contact Resistance .................100mΩ Max.@1A,6VDC
Operate Time..........................10 mSec. Max.
Release Time ...........................5 mSec. Max.
Dielectric Strength :
Between Coil & Contact........1,000VAC at 50/60 Hz for one minute.
Between Contacts ..................500VAC at 50/60 Hz for one minute.
Surge Resistance .....................3,000V (betweenCoil & Contact 1.2x50μSec.)
Insulation Resistance..............100 MegaΩ Min. at 500VDC.
Max. On/Off Switching :
Electrical.................................. 30 Ops per Minute.
Mechanical.............................. 300 Ops per Minute.
Temperature Range ................ -30 - 55°C
Humidity Range..................... 45 - 85% RH.
Coil Temperature Rise............ 35°C Max.
Vibration :
Endurance ............................... 10 to 55 Hz dual amplitude width 1.5mm.
Error Operation ...................... 10 to 55 Hz dual amplitude width 1.5mm.
Shock :
Endurance ............................. 1,000 m/S2 Min.
Error Operation ...................... 100 m/S2 Min.
Life Expectancy :
Mechanical ............................ 100,000,000 Operations at No Load condition.
Electrical ................................ 1,000,000 Operations at Rated Resistive Load.
Weight..................................... About 11 g.
Safety Standard & Its File Number :
RW:
UL ............................................ E141060
CSA.......................................... LR76598
RWH:
C-UL........................................ E141060
TÃV......................................... R9854380
Weight: 0.0110 kg
