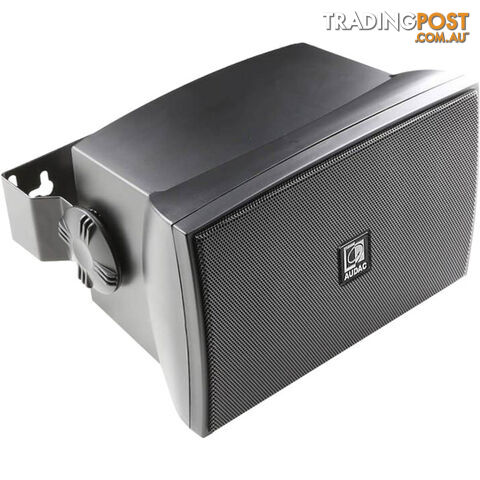

WX802OMK2B BLACK 8" 2WAY OUTDOOR SPEAKER U-BRACKET -100V / 16 OHM- IP55

AUDAC WX802_O - OUTDOOR UNIVERSAL WALL SPEAKER 8" The WX802/O is a powerful 2-way performance speaker whichis specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8”low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure. The material used for the mounting bracket on the outdoorversions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally. Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows lettingthe moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes surethat this speaker meets the IP55 standards. VARIANTS WX802MK2/OB - Outdoor black version WX802MK2/OW - Outdoor white version     KEY FEATURES AWX5™ waterproof connector 1" Dome tweeter 8" low frequency loudspeaker Aluminum front grill for permanent outdoorexposure 100V and low impedance connection possilibility Multi-tapping 100V line transformer Aluminum mounting bracket   SYSTEM SPECIFICATIONS Speaker type 2-way Max. Power 140 W RMS Power 70 W Impedance 16 ? Sensitivity (1W/1m) 89 dB Ingress Protection rating IP55 Connectors Waterproof AWX-5 connector Sound Pressure (Max. W/1m) @ 16 ? 108 dB @ 100 V 106 dB Frequency Response (± 3 dB) 60 Hz - 17 kHz Range (-10 dB) 50 Hz - 20 kHz Crossover Frequency 2.4 kHz Type Passive built-in Dispersion Horizontal 110° Vertical 110° Drivers HF 1” LF 8” Line Transformer Tappings 1 83 ? - 100 V / Not used - 70 V / 60 W 2 167 ? - 100 V / 60 W - 70 V / 30 W 3 333 ? - 100 V / 30 W - 70 V / 15 W PRODUCT FEATURES Dimensions 270 x 360 x 215 mm (W x H x D) Weight 7.500 kg Operating temperature -25 °C ~ 70 °C Construction ABS Mounting & handling Mounting bracket Front finish Aluminium grill Colours Black (RAL9005) (WX802MK2/OB) White (RAL9003) (WX802MK2/OW) Accessories Included Mounting bracket 5-pin connection cable (70 cm) Optional AU570120005 - 5-pin cable 0.5 m AU570120025 - 5-pin cable 2.5 m AU570120050 - 5-pin cable 5 m   Â
