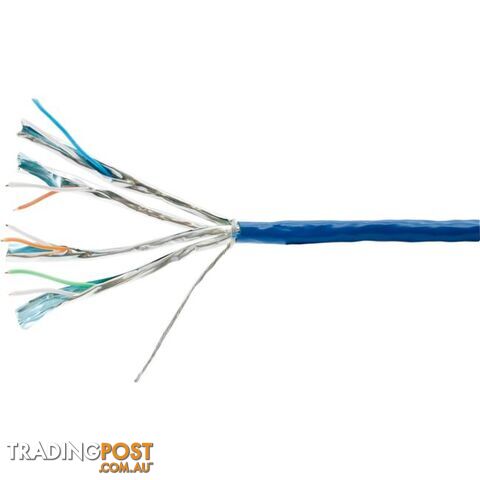

SSTPCAT6BL-305M SSTP CAT6 SOLID CABLE BLUE305M SHIELDED PER ROLL REEL

Posted More than 1 month agoAd Code BHNCK2
$399
Verified seller

Description

THIS ITEM IS SOLD AS A 305M ROLL NEED A SHORTER LENGTH? This cable is also available per metre. S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk. SPECIFICATIONS Conductor Insulation: Material: FO-PE and HD-PE Diameter: 1.30 ± 0.02mm Thickness: 0.37 ± 0.01mm Colours (per pair): Blue - Blue/White Orange - Orange/White Brown - Brown/White Green - Green/White Conductor: Material: Bare Copper Diameter: 1/0.571 ± 0.01mm Sheilding Outer Braid (loose): 16×4×1/0.12mm Aluminium Foil (per pair): 0.065×13mm Jacket Insulation Colour: Blue Material: LSOH Diameter: 7.6 ± 0.01mm Thickness: 0.6 ± 0.02mm Tensile strength (minimum): 0.917Kg/mm2 Electrical Characteristics: Conductor Resistance (max): 9.38 Ω/100m at 20°C Resistance Unbalance (max): 5% Capacitance Unbalance (max): 330pF/100m Mutual Capacitance (max): 560pF/100m IMAGES Barcode Number: 9328202021205
$399
