TLSG1005P 5 PORT GIGA DESKTOP POE+ SWITCH




+3 photos$99
Verified seller
Description
TP-LINK TL-SG1005P 5-PORT GIGABIT DESKTOP SWITCH WITH 4-PORT POE 65W
5 10/100/1000Mbps RJ45 ports

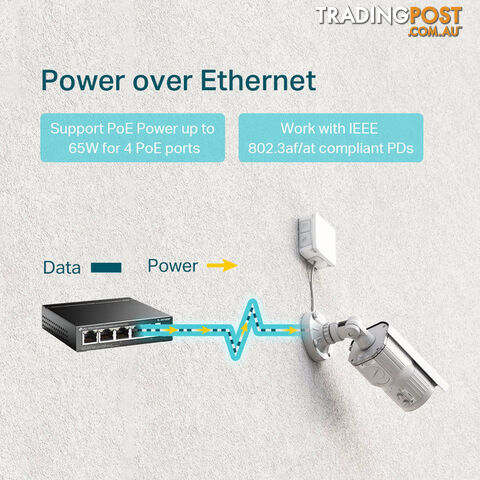

With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port

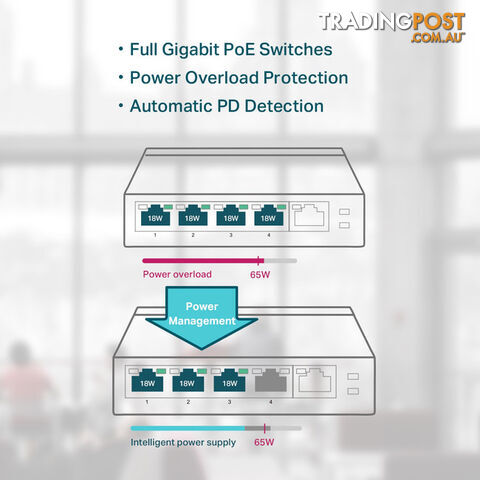

Supports PoE Power up to 65W for all PoE ports
Requires no configuration and installation
HARDWARE FEATURES
Interface ⢠5à 10/100/1000Mbps RJ45 Ports
⢠AUTO Negotiation
⢠AUTO MDI/MDIX
Network Media ⢠10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
⢠EIA/TIA-568 100Ω STP (maximum 100m)
⢠100BASE-TX: UTP category 5, 5e cable (maximum 100m)
⢠EIA/TIA-568 100Ω STP (maximum 100m)
⢠1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
⢠EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) ⢠Standard: 802.3 af/at compliant
⢠PoE Ports: Ports 1â4
⢠Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9Ã3.9Ã1.0 in (99.8Ã98Ã25 mm)
Max Power Consumption ⢠4.29 W (220/50 Hz. no PD connected)
⢠74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation ⢠14.63 BTU/h (no PD connected)
⢠253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features ⢠Compatible With IEEE 802.3af/at Compliant PDs
⢠Mac Address Auto-Learning And Auto-Aging
⢠IEEE 802.3x Flow Control
⢠802.1p/DSCP QoS
⢠IGMP Snooping
Assets
Weight: 0.7480 kg
Barcode Number: 6935364083212
$99
