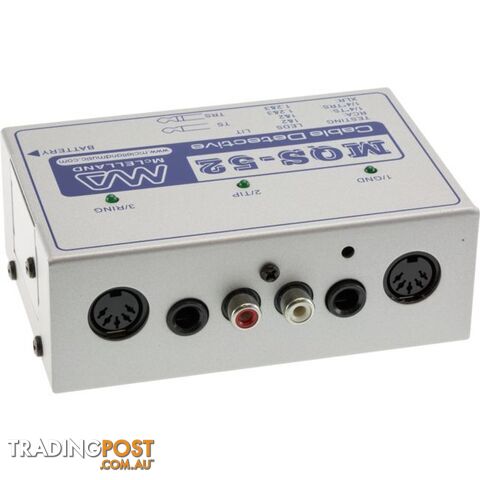

MQS52 MICROPHONE CABLE TESTER XLR RCA 6.3MM MIDI 5PIN

This unit was designed with the working musician and sound person in mind. The MQS-52features a full selection ofstandard pro audio connectors for testing all such cables. It consists of two RCA jacks, two 1/4" jacks, two XLR jacks sockets, two XLR jacks plugs and two MIDI jacks (located on the sides of the unit). PLEASE NOTE THIS UNIT REQUIRES A 9V BATTERY TO OPERATE (NOT INCLUDED). FEATURES LED1/GND: Indicates continuity between pins 1 of an XLR cable, or ground on an RCA or 1/4", or pins 4 of a MIDI cable. LED2/TIP: Indicates continuity between pins 2 of an XLR cable, or the tip on an RCA or 1/4" cable, or pins 5 of a MIDI cable. LED3/ RING: Indicates continuity between pins 3 of an XLR cable, or the ring of a stereo 1/4" cable. SPECICIFICATIONS Jacks: XLR, Phone Jack, Stereo RCA, DIN Dimension: 113mm x 73mm x 40mm Weight: 367.5g Power: 9V battery MQS52 USER MANUAL PDF file Weight: 0.5530 kg Barcode Number: 9328202034090
