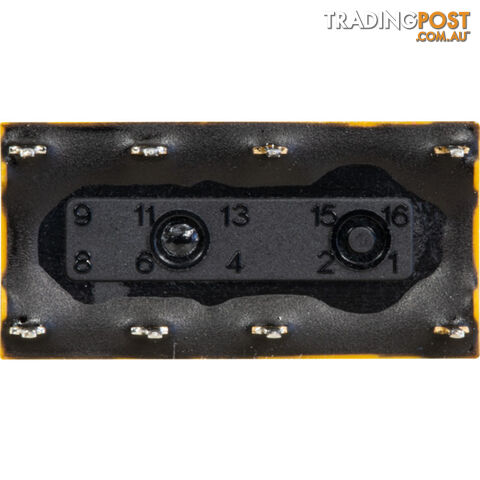

DS2E-S-DC5V 5VDC 2A DPDT 0.2W PCB RELAY

The DS2E-S-DC5V is a Miniature Signal Relay with DC coil. This DS-series signal relay has 2-form-C Ag (Au clad) contacts. Standard PC board terminal, epoxy resin seals the partsand cut off the external atmosphere, thus enabling use in difficult environments. High-performance polarized magnetic circuits that utilize the energy of permanent magnets have made it possible to create relays with strong resistance to shock and vibration. FEATURES Single side stable function Standard polarity type 200mW Nominal operating power Suitable for use in difficult environments DIL terminal array enables use of IC sockets Gold-clad twin contacts ensure high reliability Polarized magnetic circuits realize resistance to shock and vibration APPLICATIONS Industrial Communications & Networking Test & Measurement Computers & Computer Peripherals Security DS2E-S-DC5V Data Sheet PDF file Weight: 0.0050 kg
