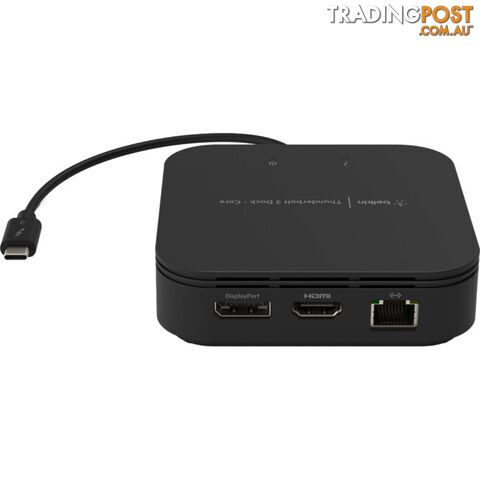

F4U110BT BELKIN THUNDERBOLT 3 DOCK CORE

THUNDERBOLT TECHNOLOGY All you need to know. Get the facts
WORLD'S FIRST THUNDERBOLT -CERTIFIED DUAL-POWERED DOCK

The Thunderbolt 3 Dock Core brings the speed, high-definition and performance of Thunderbolt technology to Mac and Windows laptops. With all the power and versatility of Thunderbolt 3, up to 40 Gbps transfer rates, plus ports to connect multiple peripherals to a Thunderbolt laptop, this dock is a streamlined way to create an expanded, high-performing desktop through a single tethered cable.

This product is TAA Compliant for use in a wide range of government applications

Learn more about Thunderbolt compatibility with M1-based Macbooks (2020)

To see what else Thunderbolt has to offer, check out our comprehensive guide to Thunderbolt technology.

FEATURED ACCESSORY FOR INTEL EVO LAPTOPS

Our Thunderbolt 3 Dock Core is recognized as a featured accessory to best pair with Intel Evo laptops. This dock helps maximize the experience of your new Intel Evo laptop and provides a simple, reliable way to help you do more.

CONNECT AN ENTIRE DESKTOP THROUGH A SINGLE CABLE

The tethered 6-inch Thunderbolt 3 cable connects multiple peripherals to your laptop, with ports for monitors, mouse, USB stick, keyboards, speakers, hard drives and more.

SIDE 1:

1 x DisplayPort 1.4 connects to high-resolution monitors/displays (for resolutions, see table below)
1 x HDMI (HDMI 2.0) port
Gigabit Ethernet connection



SIDE 2:

Tethered Thunderbolt 3 cable connects to laptop
1 x USB-C PD port (input)



SIDE 3:

Audio in/out for mic and speaker support
1x USB-A 3.2 Gen 2(10Gbps) and 1x USB-A 2.0 ports for devices that connect via USB-A such as a USB stick, mouse, keyboard or printer
WORKS WITH THUNDERBOLT 3 DEVICES

The Thunderbolt 3 Dock Core is an ideal single-dock solution for businesses using MacBooks running Mac OS, and laptops running Windows. This broad compatibility is also ideal for shared work environments or temporary workstations where laptop users are looking for a high-performing workstation with minimal set up.*

See table below for system requirements.

Display Configurations Ports
Mac macOS Sierra 10.12 or later Thunderbolt 3 port
PC (Windows) Windows 10 or later Thunderbolt 3 port
DUAL 4K MONITOR SUPPORT

Supports dual 4K 60Hz monitors for a versatile desktop configuration, via a dedicated DisplayPort and an HDMI 2.0 port. Also supports a single 5K monitor at 60Hz and capable of reaching 8K 30Hz.

Please see the table below for specific resolution capabilities for all monitor combinations.

Single Monitor Support Dual Monitor Support
Thunderbolt 3 Laptop

Laptop running High Bit Rate 3:

8K (7680 x 4320) @ 30Hz




Laptop running High Bit Rate 2:

4K (3840 x 2160) @ 60Hz



Laptop running High Bit Rate 3:

4K (3840 x 2160) @ 60Hz




Laptop running High Bit Rate 2:

4K (3840 x 2160) @ 30Hz

DUAL-POWERED FUNCTIONALITY

When the Thunderbolt 3 dock is connected to a laptop, it powers peripheral devices connected to the dock without the need for a separate power cable. Keep your laptop charged by connecting its existing power supply unit (60W recommended) to the USB-C PD port on the Thunderbolt dock.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries.

2-YEAR WARRANTY

Our Thunderbolt 3 Dock is backed by a 2-year product warranty for added peace of mind.

Specs:

L: 100mm/3.94in
W: 100mm/3.94in
H: 30mm/1.18in
Cable length: 20cm/7.87in
Weight: 213.8g

At a Glance:

World's first Thunderbolt-certified dual-powered dock
Compatible with Thunderbolt-certified Mac and Windows laptops with a Thunderbolt 3 port
Connect multiple devices to your laptop through one dock, including monitors, USB stick, mouse, keyboards, internet, hard drives and more
Supports dual 4K UHD displays @ 60Hz
7 ports: 1 x Thunderbolt 3, 1 x USB-C PD, 1 x DisplayPort, 1 x HDMI, 1x USB-A 3.2 Gen 2(10Gbps), 1x USB-A 2.01, 1 x Audio in/out, 1 x Gigabit Ethernet
Supports pass-through power from a laptop to connected devices
Connect laptop’s power supply unit (60W recommended) to the dock to power the laptop
TAA Compliant for use in a wide range of government applications
Protected by 2-year product warranty

Package Includes:

Thunderbolt 3 Dock Core

*Our docks are designed to be compatible with all Thunderbolt-certified hosts (dependent on OS version) and peripherals.

Weight: 0.2880 kg
Barcode Number: 745883786497
