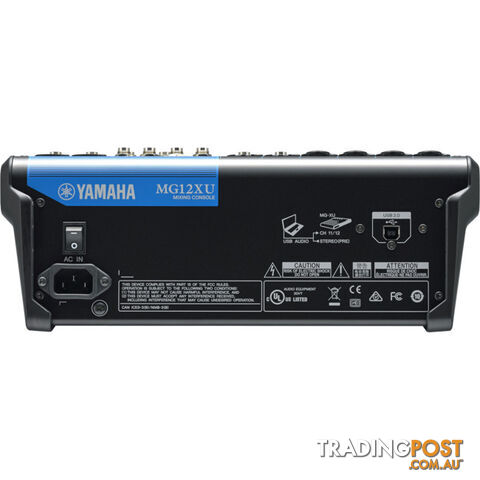

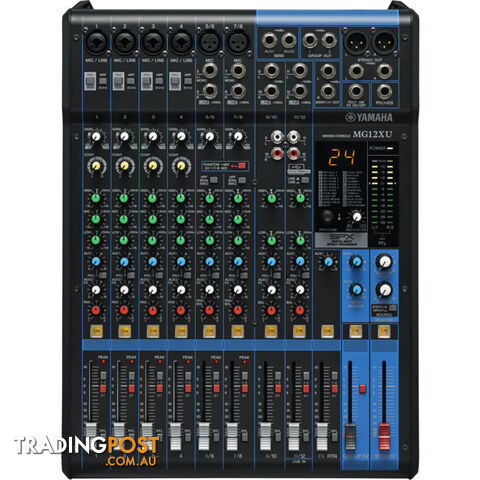

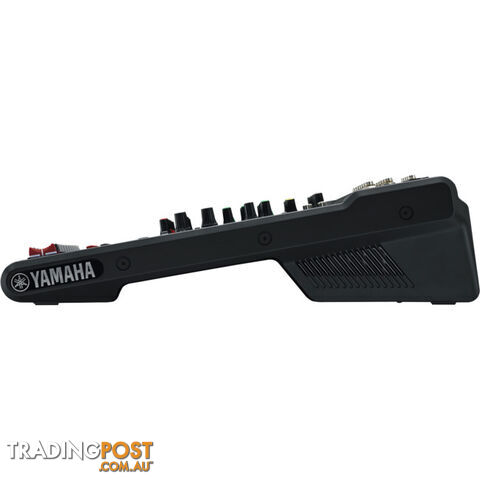

MG12XU 12CH MIXER 4 MONO + 4 STEREO MAX 6 MIC- 12 LINE I/P -YAMAHA

12-CHANNEL MIXING CONSOLE: MAX. 6 MIC / 12 LINE INPUTS (4 MONO 4 STEREO) / 2 GROUP BUSES 1 STEREO BUS / 2 AUX (INCL. FX 12-Channel Mixing Console Max. 6 Mic / 12 Line Inputs (4 mono 4 stereo) 2 GROUP Buses 1 Stereo Bus 2 AUX (incl. FX) “D-PRE” mic preamps with an inverted Darlington circuit 1-Knob compressors High-grade effects: SPX with 24 programs 24-bit / 192kHz 2in / 2out USB Audio functions Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter Includes Cubase Al DAW software download version PAD switch on mono inputs 48V phantom power XLR balanced outputs Internal universal power supply for world-wide use Optional Rack Mount Kit RK-MG12 Available Metal chassis Dimensions(WxHxD): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6") Net Weight: 4.2 kg (9.3 lbs.)   SPECIFICATIONS OUTLINE Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) I/O Phantom power 48 V Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit Input Channels Mono 4 Mono/Stereo 2 Stereo 2 Output Channels STEREO OUT 2 MONITOR OUT 1 PHONES 1 AUX SEND 2 GROUP OUT 2 Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) Input Channel Function PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: 22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec EQ HIGH Gain: 15 dB/-15 dB, Frequency: 10 kHz shelving EQ MID Gain: 15 dB/-15 dB, Frequency: 2.5 kHz peaking EQ LOW Gain: 15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping Level Meter 2x12 -segment LED meter GENERAL SPECIFICATIONS Total harmonic distortion 0.03 % @ 14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ 24dBu (1kHz), GAIN knob: Min Frequency response 0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to thenominal output level @ 1 kHz, GAIN knob: Min Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max) Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min) Crosstalk -78 dB Power requirements AC 100 ? 240 V, 50 / 60 Hz Power consumption 22 W Dimensions W 308 mm (12.1") H 118 mm (4.6") D 422 mm (16.6") Net weight 4.2 kg (9.3 lbs.) Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 Others Operating Temperature: 0 to 40°C     Barcode Number: 4957812553865
