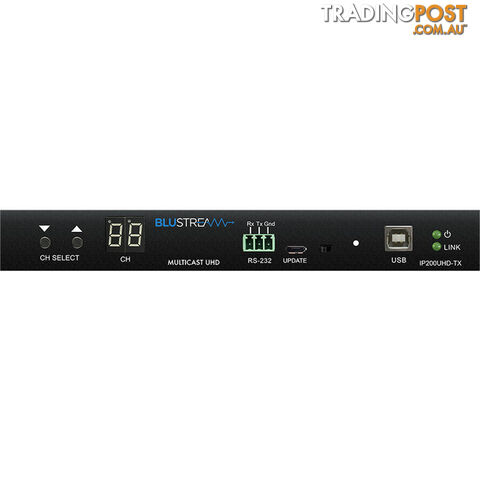

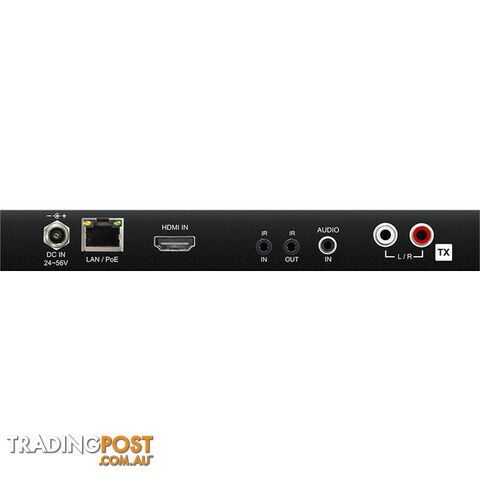

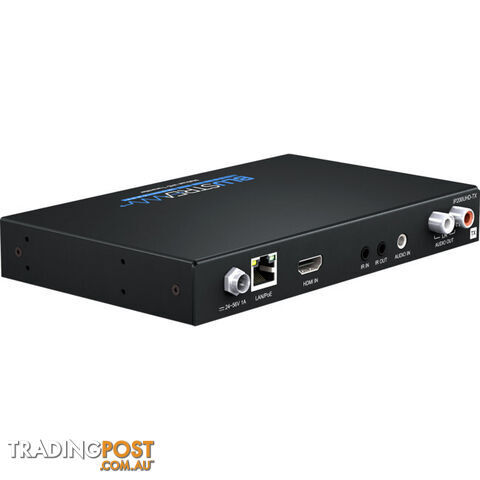

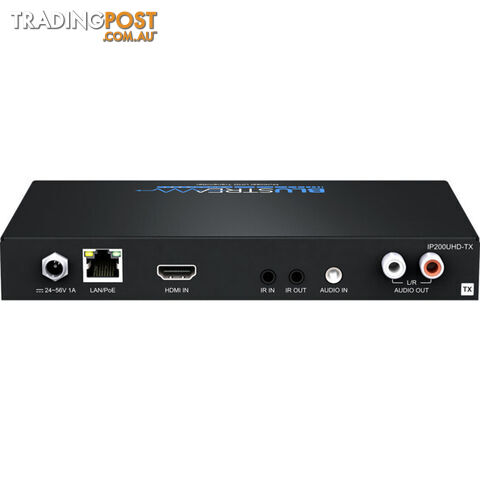

IP200UHDTX IP MULTICAST UHD VIDEO TRANSMITTER 100M OVER 1GB BI-DIR IR RS232 POE

IP200UHD-TX IP Multicast UHD Video Transmitter over 1GB Network , Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue AudioEmbedding, Analogue Audio Breakout and HDCP2.2 DESCRIPTION Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GBNetwork switch. The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations. KEY FEATURES Advanced UHD video over 1Gb Network Virtually unlimited system size Extends HDMI up to a distance of 100m over a single CAT cable Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) Supports all known HDMI audio formats including DolbyTrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission Advanced signal management for independent routing ofIR, RS-232, USB/KVM, audio and video PoE (Power over Ethernet) to power Blustream productsfrom PoE switch HDCP2.2 compliant with advanced EDID management Analogue L/R audio embedding Analogue L/R audio breakout Local 24-56V power supply (should Ethernet switch notsupport PoE) - sold separately Features 4 operational modes: - Matrix distribution (requires 1GB network switch) - Video wall (requires 1GB network switch) - One-to-one HDMI extender (no network switch required) - One-to-many HDMI extender (no network switch required) SPECIFICATIONS Video input: 1x HDMI Type A, female Video output: 1x LAN RJ45 connector Audio input:1x 3.5mm L/R Analogue audio Audio output connectors: 2x RCA L/R Analogue audio Ethernet port: 1x LAN RJ45 connector RS-232 Serial port: 1x 3-Pin Phoenix connector USB/KVM Port: 1x USB - Type B IR input: 1x 3.5mm stereo jack IR output: 1x 3.5mm mono jack Firmware Update: 1x Micro-USB Mounting kit included Dimensions (W x D x H ): 190mm x 114mm x 25mm Shipping Weight: 0.8kg Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature : -4°F to 140°F (-20°C to 60°C) BOX CONTENTS 1x IP200UHD-TX 1x (IRR) IR Receiver 1x (IR1) IR Transmitter 1x Serial 3-pin phoenix connector 1x Mounting kit     Product Video - Software Quick Start Guide Video not loading? Watch it over at YouTube! Weight: 0.8400 kg Barcode Number: 9340242002907
