CHA530 AUDAC 5" 2 WAY 3IP0W 100V HORN IP66 - STAINLESS STEEL BRACKET


$600
Verified seller
Description
AUDAC CHA530 2-WAY HORN LOUDSPEAKER 5"
The CHA530 is a 2-way horn loaded louds peaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.
The construction is composed of a1" high frequency compression driver and a 5" mid/low frequency driver.
The selection of high-quality components and acoustic engineering craftmanship makes the CHA530 significantly better performing than other traditional horn speakers.
A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.
It features an RMS power handling of 30 Watt and a max power handling of 60 Watt.
The sensitivity measures 98 dB while a maximum continuousSPL of 113 dB can be achieved.
The frequency response (±3 dB) starts from 110 Hz up to 16 kHz.
A multi-tapping line transformer allows the speaker to beused in 100 Volt and 70 Volt public address systems.
It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector.
Various power tappings for 30 Watt, 15 Watt, 7.5 Watt and3.75 Watt are available.

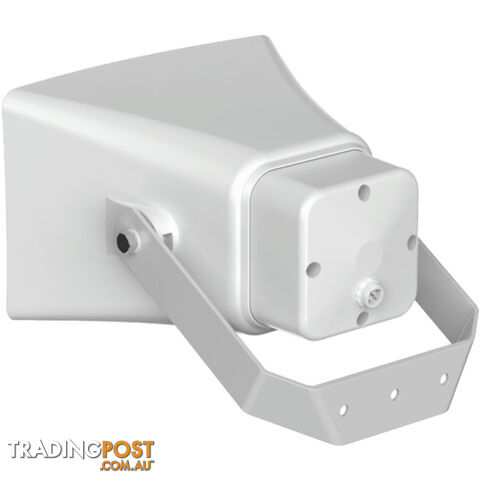

The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement.
This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.
KEY FEATURES
IP66 Ingress protection
Multi-tapping 70/100V line transformer
5" Low frequency loudspeaker
1" High frequency horn tweeter
High quality UV and impact resistant ABS construction
Â
SYSTEM SPECIFICATIONS
Speaker type 2-way horn speaker
Max. Power 60 W
RMS Power 30 W
Sensitivity (1W/1m) 98 dB
Drivers 5â MF / LF Woofer
Ingress Protection rating IP66
Connection AWX5⢠waterproof
Line Transformer Tappings 1 167 ? - 100 V / Not used - 70 V / 30 W
2 333 ? - 100 V / 30 W - 70 V / 15 W
3 667 ? - 100 V / 15 W - 70 V / 7.5 W
4 1333 ? - 100 V / 7.5 W - 70 V / 3.75 W
Sound Pressure (Max. W/1m) @ 100 V 113 dB
Frequency Response (± 3 dB) 110 Hz - 16 kHz
Crossover Type Passive built-in
Dispersion Horizontal 110°
Vertical 60°
Drivers HF 1" HF Horn tweeter
PRODUCT FEATURES
Dimensions 310 x 215 x 330 mm (W x H x D)
Weight 4.7 kg
Construction Impact & UV resistant ABS
Colours Light grey (RAL7035)
Mounting & handling Powder coated steel
Accessories Included Mounting bracket
