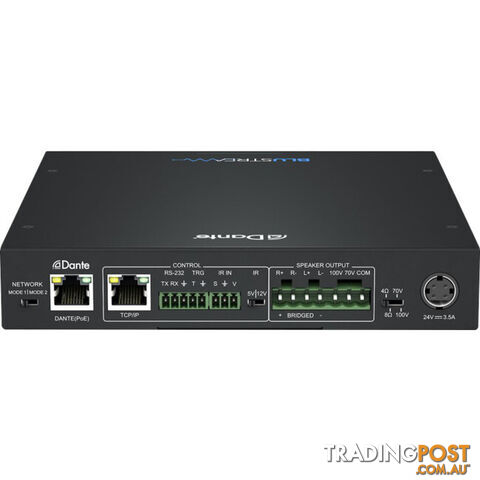

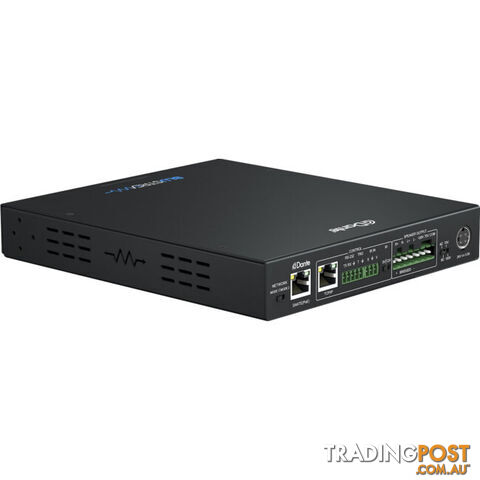

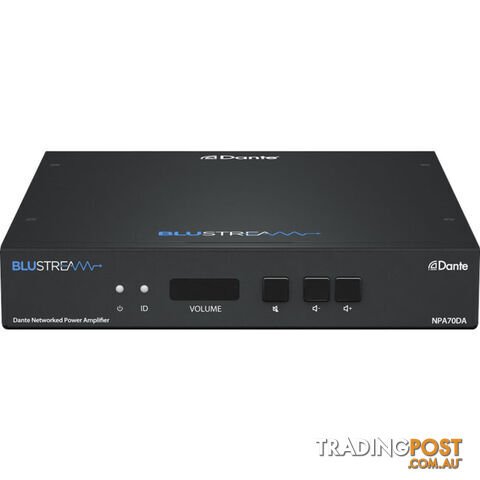

NPA70DA DANTE NETWORKED 2X 35W POWER AMPLIFIER 1X 70W MONO

BLUSTREAM - NPA70DA DANTE NETWORKED POWER AMPLIFIER Blustreams NPA70DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation. The NPA70DA features a 2 x 35W digital amplifier (1 x 70W mono) or 70V / 100V hi-level constant voltage output and Dante® audio integration. The NPA70DA can be powered via PoE from a compatible network switch, or locally should the switch not support PoE . The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante® connections, DSP with a 31 band EQ, audio delay for lip sync correction, and control via front panel, IR, RS-232, TCP/IP, web-GUI or 12V trigger. KEY FEATURES Advanced network audio amplifier with Dante® integration Supports 2 x 35W @ 4 / 8 ohm, 1 x 70W @ 4 / 8 ohm or 70 / 100V constant output for multiple speakers with longer cable runs Supports power via PoE on Dante® LAN connection or local power supply* Dual network option - independent Dante® and LAN control ports, or combined to a single LAN 2ch Dante® / AES67 audio input DSP with 31 band EQ with 3dB/-10dB and audio delay Local 12V input trigger for automated power control Control via front panel, IR, RS-232 and IP Auto standby mode with signal sensing In-built web-GUI for setup and control * Amp power limited when using PoE SPECIFICATIONS Audio Inputs: 1 x RJ45 Dante® Audio connection Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100V speaker) Ethernet Port: 1 x LAN RJ45 connector (Dante®), 1 x LAN RJ45 connector (Network) RS-232 Serial Port: 1 x 3-Pin Phoenix connector IR Input Ports: 1 x 3-Pin Phoenix connector Trigger Input: 1 x 2-Pin Phoenix connector Rack Mountable: 19” Rack mounting and wall / surface mounting kit included Casing Dimensions (W x H x D): 202mm x 175mm x 31mm Dimensions Including Connections (W x H x D): 245mm x 175mm x 31mm Shipping Weight: 1.8kg Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Power Supply: PoE Type 4, or 24V/3.5A DC 4-pin DIN   BOX CONTENTS 1 x NPA70DA 1 x 24V/3.5A power supply 1 x Remote control 1 x IR Receiver 1 x Rack mounting kit 1 x Wall / surface mounting kit 4 x Rubber feet 1 x User Manual Weight: 2.11 kg Barcode Number: 9340242004222
