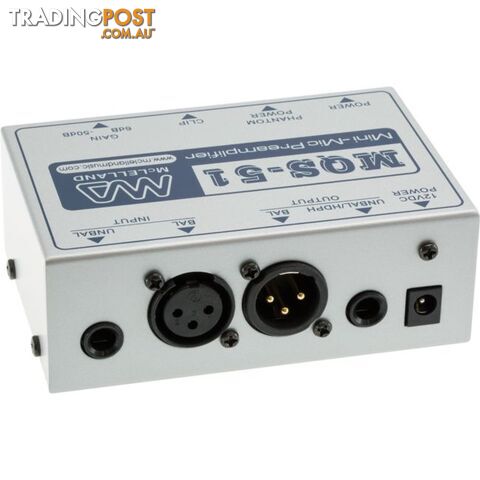

MQS51 MINI MIC PREAMPLIFIER

MINI MIC PREAMPLIFIER

The MQS-51 is designed to provide a simple, compact and inexpensive microphone preamplification for a variety of applications. The unit has both XLR and 1/4" Inputs and Outputs, and a simgle Gain control with a Clip indicator. Phantom powering is included for the use with a condenser microphone. The 1/4" Output is specially designed for use aseither a mono balanced output, or a stereo headphone output.The unit comes with a power adaptor.

FEATURES
XLR and 1/4" Inputs and Outputs
Gain Control
Clip LED indicator
1/4" output drives stereo headphones
36V Phantom power
SPECIFICATIONS
Input Impedance: 10K ohm bal; unbalanced
Max Input Level: 4dBV XLR (balanced) / 10dBV (unbalanced)
Max Gain: 50dB (XLR), 44dB (6.3mm)
Phase Shift:
EIN: 129 dB max.
THD:
IMD (SMPTE):
Power: 12V DC 150mA
Size: 113mm x 73mm x 40mm
Weight: 349g

Weight: 0.6110 kg
Barcode Number: 9328202034182
