Consumer Electronics
EPA152 AUDAC 2 X 150W RMS POWER AMP CLASS D


$1,025
Verified seller
Description
EPA152- DUAL CHANNEL CLASS D POWER AMPLIFIER
The EPA series are energy efficient Class-D Specifications power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker
systems.
They come available in various models with different output configuration and power ratings.
An outstanding sound quality is combined with other knownadvantages of Class-D amplifiers such as high energy efficiency.
Automatic signal detection switches the amplifier to standby mode when no input signal is detected.
This makes the amplifier comply to international energy and environmental requirement standards.
The compact size and lightweight design only requires a single 19â rackspace, while making them suitable for both fixed rack and mobile applications.
The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.
The EPA152 is built as a dual channel (Stereo) amplifier containing two individually controllable channels capable ofdelivering a power of 2 x 150 Watt in stereo mode.
In bridge mode, an output power of 300 watt can be delivered to a single load. It features various specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

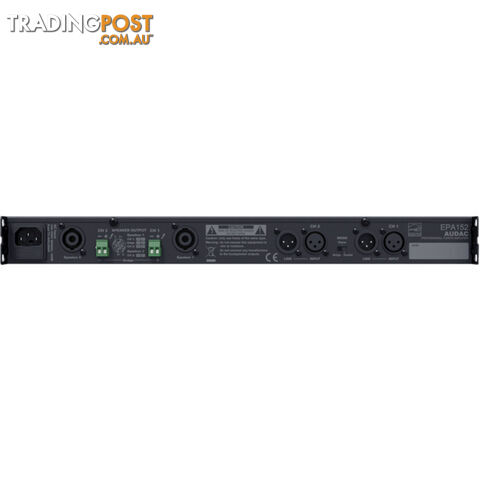

The signal input connections are implemented using balanced XLR connectors with link output connectors, allowing linkthrough to other amplifiers.
Loudspeaker outputs are connected using both Speakon compatible and terminal block output connectors.
FEATURES
2 x 150 Watt RMS output power
Energy-star certified
Standby energy saving mode
Lightweight Class-D amplifier
Convection cooled
Advanced protection circuitry
Stereo, parallel and bridged mode
High efficiency
APPLICATIONS
Clubs & pubs
Restaurants & bars
Warehouses & retail stores
Public & office buildings
Mobile installations
SPECIFICATIONS
RMS power @ 4 Ohm Stereo
2 x 150 Watt
RMS power @ 8 Ohm Stereo
2 x 80 Watt
RMS power @ 4 Ohm Bridge
300 Watt
Frequency response
20 Hz - 20 kHz
Signal to noise ratio
> 90 dB
THD N by 1 kHz (1/2 Rated Power)
70 dB
Technology
Class - D
Power supply
Switching mode
Input sensitivity
0 dB (1V RMS)
Input impedance
12 k Ohm balanced
Protection
DC Short-circuit
 Over heating
 Over load
 Signal limiting
Cooling system
Convection cooled
Connectors
Input XLR input & signal linkthrough
 Output Speakon compatible & 2-pin terminal
block (5.08 mm)
Operating Temperature
0° ~ 40°C at 95% humidity
Power Consumption
145 Watt (1/3 MOP at 1 kHz)
Standby power consumption
0.8 Watt (~30 sec standby time)
Dimensions (Width x Height x Depth)
482 x 44 x 330 mm
Weight Net
4.1 Kg
Mounting
19"
Unit Height
1 HE
Construction
Steel
Colour
Black
Shipping weight and Volume
Kg - 0.028 Cbm
 Â
*AUDAC reserves the right to change specifications without notice: this is part
of our policy to continuously improve our products.
Â
Â
EPA152 Specification Sheet PDF file
EPA Dual Channel User Manual PDF file
Weight: 5.33 kg
Barcode Number: 5414795039162
$1,025
