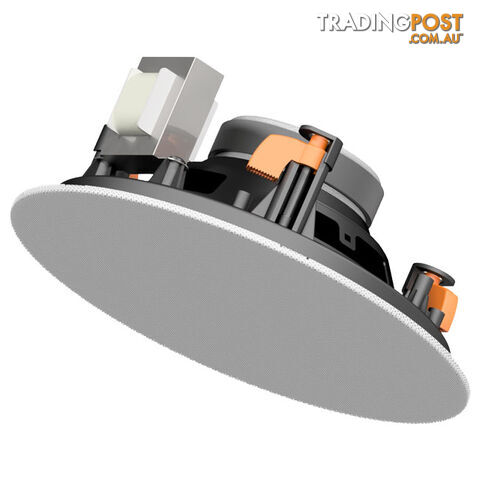

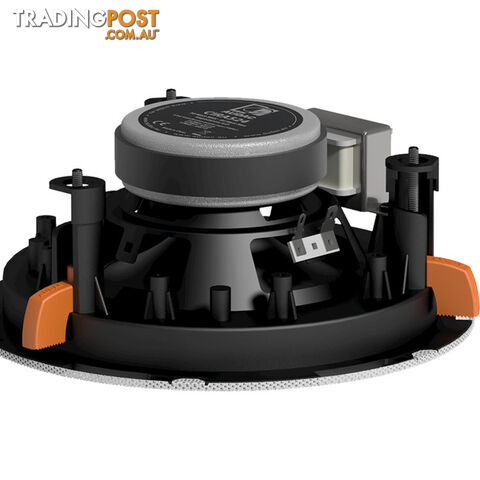

CIRA724W QUICK FIT 6.5" 2-WAY SPEAKER AUDAC

CIRA7 QUICKFIT™ 2-WAY 6.5" CEILING SPEAKER WITH TWISTFIX™ GRILL Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition fromgrill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and greatinstallers convenience. The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm bypass connection. SYSTEM SPECIFICATIONS Max. Power 60 W RMS Power 30 W Sensitivity (1W/1m) 88 dB Speaker type 2-way coaxial Impedance 8 ? (CIRA724) 16 ? (CIRA730D) Connectors Multi-tap Fast-con™ connections Sound Pressure (Max. W/1m) @ 100 V 103 dB Frequency Response (± 3 dB) 55 Hz - 20 kHz Range (-10 dB) 45 Hz - 20 kHz Dispersion Conical 150° Drivers HF 1” LF 6.5¼” Line Transformer Tappings 1 24 W - 417 ? (CIRA724) 2 12 W - 833 ? (CIRA724) 3 6 W - 1667 ? (CIRA724) PRODUCT FEATURES Cut-out measurement 200 mm (Ø) Weight 1.45 kg (CIRA724) 1.35 kg (CIRA730D) Operating temperature -20 °C ~ 60 °C Construction ABS Front finish TwistFix™Borderless finely perforated steel grill Built-in depth 78 mm (CIRA724) 75 mm (CIRA730D) Mounting QuickFit™ mounting system Fixture point for safety cable Colours White (RAL9003) (CIRA724/W& CIRA730D/W) Dimensions 224 mm (Ø)   Â
