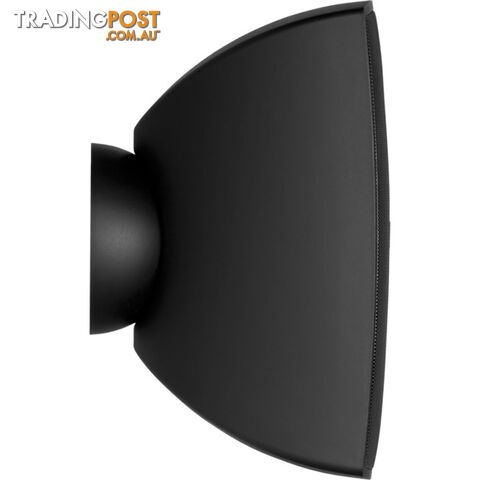

ATEO4B 4" TWO WAY 8 OHM -100V SPEAKER CLEVERMOUNT DESIGN - BLACK

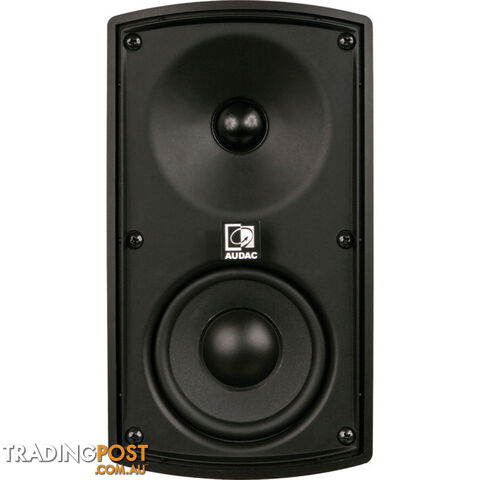

ATEO6 - WALL SPEAKER WITH CLEVERMOUNT™ 1PAIR X 4" 2 WAY 100 VOLT OR 8 OHM SPEAKERS The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs. The ATEO4 is the 4” version, with a 1” dome tweeter and a 4” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABShousing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the especially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left forclipping the loudspeaker onto the wall-plate, tightening thesafety screw and you’re ready to rock! This way, it’s really child’s play to installa large number of loudspeakers in no-time. Even if you’re working all alone while people are watching your fingers or when installing the speakers up high, when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).   VARIANTS ATEO4/B - Black version ATEO4/W - White version   SYSTEM SPECIFICATIONS Speaker type Full range Max. Power 70 W RMS Power 35 W Impedance 8 ohm Sensitivity (1W/1m) 86 dB Connectors 6-pin Custom Terminal Block Drivers 1” Dome tweeter 4” MF / LF Woofer Incline angle Left 30° Right 30° Bottom 30° Top 5° Line Transformer Tappings 1 24 W / 417 ohm 2 12 W / 833 ohm 3 6 W / 1667 ohm 4 3 W / 3333 ohm Sound Pressure (Max. W/1m) @ 8 ohm 101 dB @ 100 V 100 dB Frequency Response (± 3 dB) 100 Hz - 20 kHz Range (-10 dB) 65 Hz - 20 kHz Dispersion Horizontal 130° Vertical 130° PRODUCT FEATURES Dimensions 136 x 244 x 153 mm (W x H x D) Weight 2.05 kg Mounting Clevermount™ Construction ABS Front finish Steel grill Colours Black (RAL9005) (ATEO4/B) White (RAL9010) (ATEO4/W)     ATEO4 Brochure PDF file ATEO4 Technical Drawing PDF file ATEO4/6 User Manual PDF file ATEO 4" 2 way with CleverMount Video not loading? Watch it over at YouTube! Weight: 4.45 kg Barcode Number: 5414795030497
