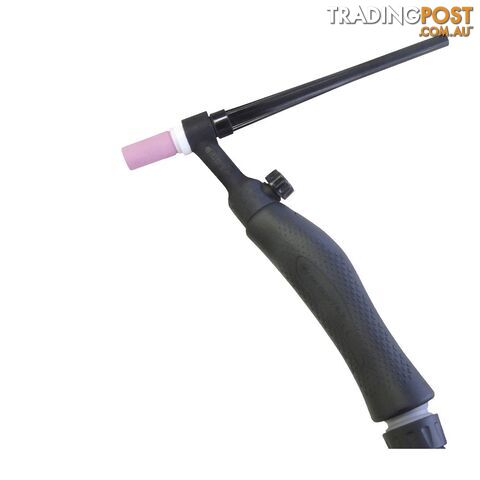

17 TIG Torch With Valve 4 Metres 10/25 Type Dinse Unimig 17V-4MCP25

The 17V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips, knuckle joins and a screwless, interchangeable switch. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also flex-head compatible.

Specifications

 Cooling Method   Air Cooled
 Duty Cycle Ac / Dc   35% @ 105A
 Length   4 Metres
 Dinse Size   35/50
 Electrode Size   1.0-3.2mm
 Standard   EN60974-7



ERGONOMIC HANDLE
Like an extension of your hand, the ergonomically designed handle includes soft grips, knuckle joints and a screwless, interchangeable switch.

ADVANCED CABLE SYSTEM


UNIMIGs advanced cable system features rubber cable materials to guarantee the best performance. Switch leads are shielded as standard to ensure minimal tracking and maximum machine protection. Positioning of the torch is made easier through the combination of knuckle joints and a flexible leather section that covers the first metre of the torch behind the handle.










Part Number/SKU: 17V-4MCP25
