4 Metres 9V TIG Torch 35/50 Type Dinse Unimig 9V-4MCP50

4 METRES 9V TIG TORCH 35/50 TYPE DINSE UNIMIG 9V-4MCP50

The 9V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips and knuckle joints. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also flex-head compatible.

SPECIFICATIONS

 COOLING METHOD  Air Cooled
 DUTY CYCLE - DC  35% @ 125A
 DUTY CYCLE - AC  35% @ 90A
 LENGTH  4 Metres
 DINSE SIZE  35/50
 ELECTRODE SIZE  1.0-2.4mm
 STANDARD  EN60974-7

ERGONOMIC HANDLE
Like an extension of your hand, the ergonomically designed handle includes soft grips, knuckle joints and a screwless, interchangeable switch.

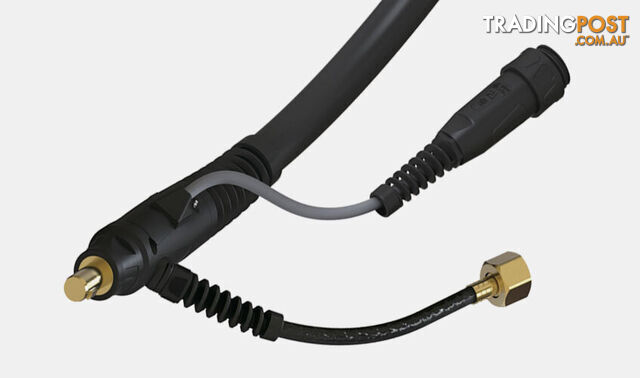

ADVANCED CABLE SYSTEM
UNIMIGs advanced cable system features rubber cable materials to guarantee the best performance. Switch leads are shielded as standard to ensure minimal tracking and maximum machine protection. Positioning of the torch is made easier through the combination of knuckle joints and a flexible leather section that covers the first metre of the torch behind the handle.




Part Number/SKU: 9V-4MCP50

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
