Tap T461 BSW 1/4-20 Z3 Spiral ISO529 Bott HSSE BLU Sutton Tools T4610635

Name: Tap T461 BSW 1/4-20 Z3 Spiral ISO529 Bott HSSE BLU Sutton Tools T4610635
Brand: Custom
SKU: BYTSX2
Price: 32.85 AUD
Availability: OutOfStock

Posted 2 weeks agoAd Code BYTSX2

Tap T461 BSW 1/4-20 Z3 Spiral ISO529 Bott HSSE BLU Sutton Tools T4610635 - photo 1 of 2

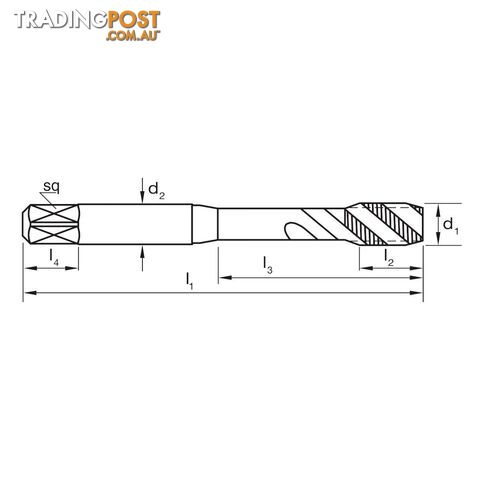

Tap T461 BSW 1/4-20 Z3 Spiral ISO529 Bott HSSE BLU Sutton Tools T4610635 - photo 2 of 2

2 photos

$32.85

Verified seller

Description

TAP T461 BSW 1/4-20 Z3 SPIRAL ISO529 BOTT HSSE BLU SUTTON TOOLS T4610635

Features

General-purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general-purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: British Standard Whitworth 55° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast

Part Number/SKU: T4610635

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
