Refrigerated Compressed Air Dryer 119.9 L/S Capacity / 240V / 1 1/2” BSP F TFD72

The Pilot TFD 72 Refrigerated Compressed Air Dryer System is rated for Australian conditions with a flow rate based on an ambient temperature of 35°c. It offers a cost-effective air treatment solution, with reduced downtime, lower equipment maintenance costs and improved product finish.
Fitted with the efficient ALU-DRY heat exchanger, high-efficiency compressors, hot gas bypass valve and low-pressure drop, the system also offers reduced energy consumption
Upgraded electrical control panel
Hot gas bypass valve
Condensate drain
Rated for Australian conditions with a flow rate based on an ambient temperature of 35°c

 Model

 TFD 72


 Flow Rate (L/sec)
 CFM

 119.9
 254


 Power Supply (Voltage)

 240


 Port Sizes   (In/Out)

 11/2 BSP F

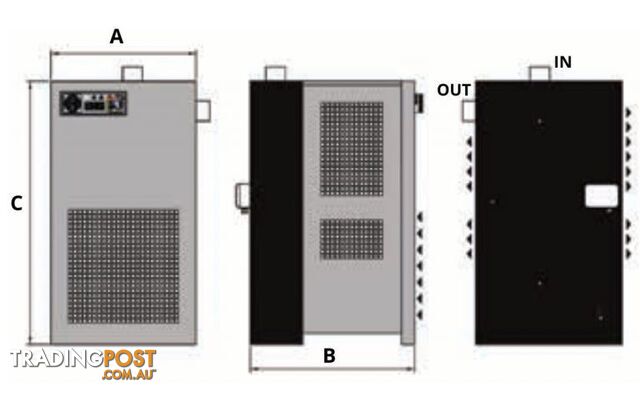

 Dimensions mm (W x D x H)

 354 x 776 x 987
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
Warranty: 12 months on all products listed.
A 3 micron Pre-Filter is required to be fitted in the compressed Air System prior to the dryer to ensure product warranty

Data refers to the following condition: Ambient temperature of 35°c, with inlet air at 7 bar and 45°c. Pressure dew point as per Class 5-ISO Standard 8573.1.



Part Number/SKU: TFD72

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
