Tap T275 UNF 1/4-28 2B Spiral R40 N DIN2184-1 C HSSE Sutton Tools T2750635

Name: Tap T275 UNF 1/4-28 2B Spiral R40 N DIN2184-1 C HSSE Sutton Tools T2750635
Brand: Custom
SKU: SCZ6Y9
Price: 63.45 AUD
Availability: OutOfStock

Posted 2 weeks agoAd Code SCZ6Y9

Tap T275 UNF 1/4-28 2B Spiral R40 N DIN2184-1 C HSSE Sutton Tools T2750635 - photo 1 of 2

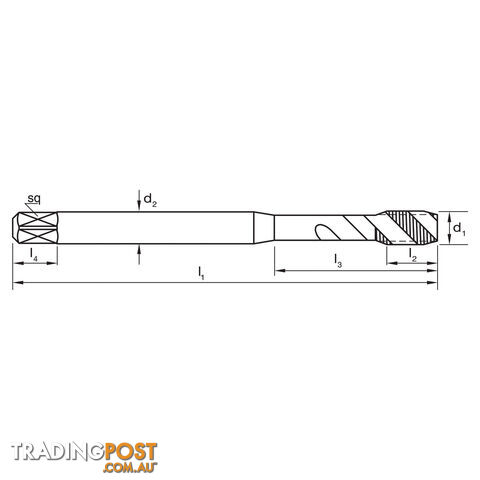

Tap T275 UNF 1/4-28 2B Spiral R40 N DIN2184-1 C HSSE Sutton Tools T2750635 - photo 2 of 2

2 photos

$63.45

Verified seller

Description

TAP T275 UNF 1/4-28 2B SPIRAL R40 N DIN2184-1 C HSSE SUTTON TOOLS T2750635

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Part Number/SKU: T2750635

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
