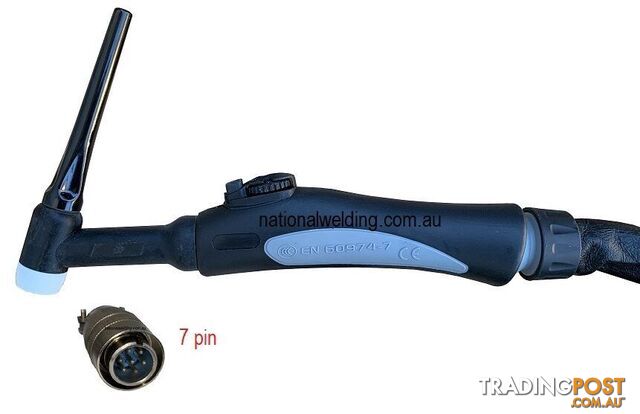

4 Metres Air Cooled TIG Torch SR-26-4MCP50-7Pin

26 SERIES TIG TORCH 8M

The SR26 TIG Torch has been built for effortless and superior performance while AC or DC High-Frequency TIG welding, with shielded switch leads for max machine protection.
Weld with electrodes as thick as 4.0mm with a 180A output
Keep your hand comfortable with a soft grip and knuckle joints on the ergonomic handle
Easily swap our torch head to a flex-head and weld at any angle

Modular Torch Controls
Our torch system accepts a full range of interchangeable control modules, including horizontal scroll, vertical scroll, a single button and a blank module for foot pedal users. Each module snaps into place easily, letting you set up the torch to match your preferred welding method and the level of control you want at your fingertips.

Additional Features

180A Output
Perform effortlessly on every weld. With a rated output of 180A, youll be able to weld with tungsten electrodes up to 4.0mm thick.

Ergonomic Handle
The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible
Bend your torch head to any angle you need. The 26 Series torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

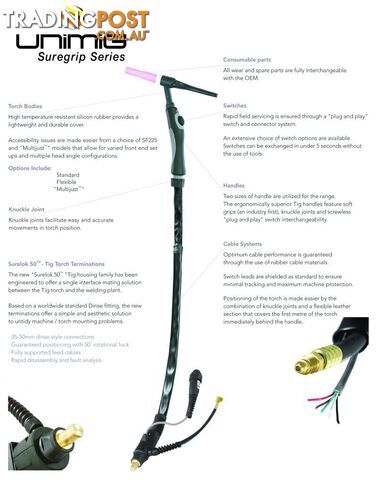

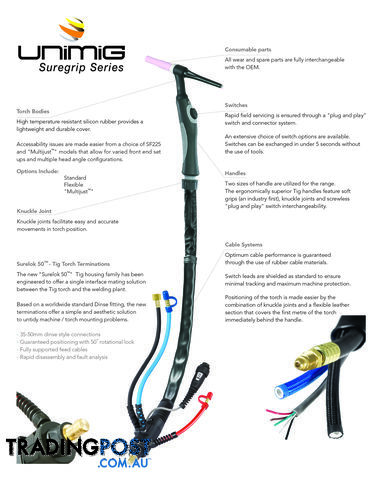

Advanced Cable System
A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.



TIG Torch Manual




Part Number/SKU: SR-26-4MCP-7Pin

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
