TAP T175 UNF 5-44 2B GUN N DIN2184-1 B HSSE TiN Sutton Tools T1750318

Name: TAP T175 UNF 5-44 2B GUN N DIN2184-1 B HSSE TiN Sutton Tools T1750318
Brand: Custom
SKU: TZCVWW
Price: 54.9 AUD
Availability: OutOfStock

Posted 2 weeks agoAd Code TZCVWW

TAP T175 UNF 5-44 2B GUN N DIN2184-1 B HSSE TiN Sutton Tools T1750318 - photo 1 of 2

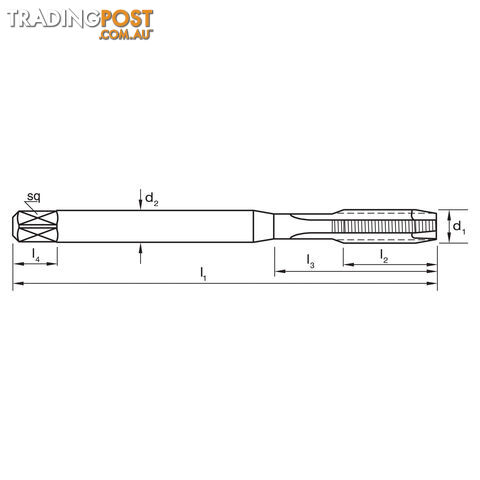

TAP T175 UNF 5-44 2B GUN N DIN2184-1 B HSSE TiN Sutton Tools T1750318 - photo 2 of 2

2 photos

$54.90

Verified seller

Description

TAP T175 UNF 5-44 2B GUN N DIN2184-1 B HSSE TIN SUTTON TOOLS T1750318

Features

General-purpose use, materials up to approximately 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to 3 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast
Steel - Low alloy & cast
Steel - High alloy, cast & tool: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Part Number/SKU: T1750318
