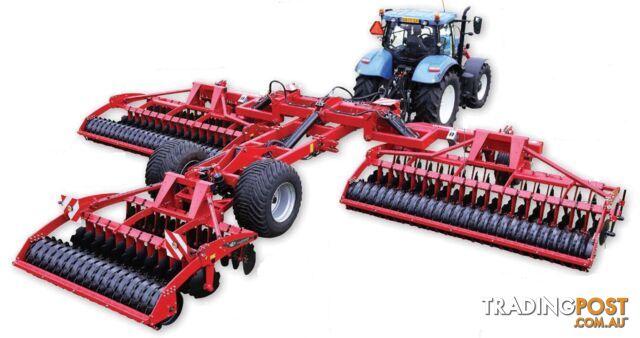

Lely MultiDisc XXLHT Harrow

The XL has more clearance between the 2 discrows and is thus better suited for fields with lots ofcrop remains like maize and sunflower.TheMultidisc XXL has discs ? 610 mm and larger gangspacing for better flow. The XXL legs are setlengthwise to make them sturdy and resistant tovery harsh conditions.

• Rubber suspension. For theXL version stiffer triangle shaped rubbers are usedthat can handle greater forces.
• The roller has many settings and afloating system. This system controlsthe working depth of the machine.
• Shot blasted, powder-coatedframe and headstock.
• Multidiscs are available in mounted rigid, mountedfolding H, and semi-trailed folding HT modelsranging from 1,8 up to 12 meters wide.Folding Multidiscs can be stocked in folded position.Simple and compact!
• Hardened discs with high cutting capacity
• Seal with overgreasing protection
• Protection against trash
• 5 bolts M12 10.9
• One-piece forged hub
• Extra large greasing chamber
• Oversized taper roller bearings
• Cast steel cap
• Optional: side deflector plate or discsfor keeping the soil stream inside the working width of the machine.
• Optional: straw harrow for spreadingthe plant remains evenly.
• Optional: packer roller withindependently suspended, self-adjustingscrapers.

Standard specification

• Pulled combination:Lely MultiDisc XXLH with a very robust transport under-carriage, hydraulically braked axle andtyres 700/50×26.5
• 2 Rows of discs made out of hardened steel ? 610 mm
• Gang spacing 115 cm
• Heavy bearings with overdimensioned wheel hubs, low maintenance
• Torsion bar suspension by means of triangular rubbers for a maximum freedom of movement of every discseparately
• Stable, powder coated frame with robust headstock

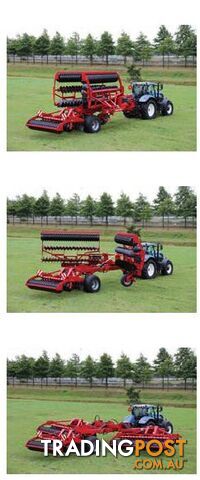

• Hydraulically foldable for road transport
• Depth control by means of the floating system with crumbler roller ? 520 mm
• Hydraulic unlocking by sequence valve
• With EASYtronic controller

.
Special benefits

• The wheels do not touch the soil during work. A seeder is easily mountable.
• Hardened steel discs, solid side fastening with 5 bolts 10.9, simply accessible.
• The aggressive action of the serrated discs and the large distance between the rows of discs give an idealmulching and mixing result of crop residue or green cover crops.
• Extra protected sealing of the bearings; lubricator chamber provided with a large quantity grease; hot forged hub.
• High stability of the torsion bar suspension of the roller.
• The floating system: if necessary the Multidisc disc harrow can break out upwards independently from theroller. The roller continues to follow the ground.
• The folded sections of the machine are secured by locking pins.
• Modular stable frame for road transport.

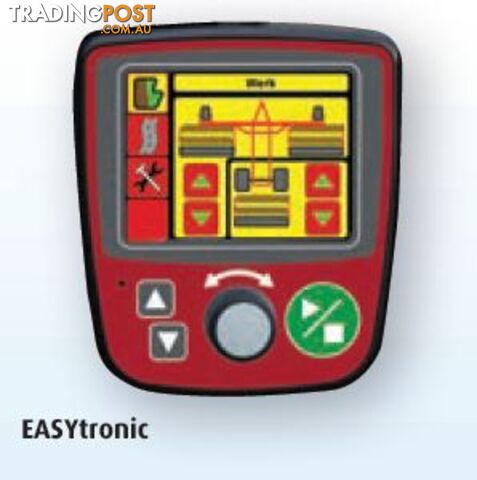

• EASYtronic controller: by pressing the start/stop button, the EASYtronic controller handles automatically
  different hydraulic functions of the machine. Features like pressure-release, floating of the side frames and
  lift/sink speed can be controlled through the display. This system is compatible with a Load Sensing system
  as well as an open system, that’s why you need three tubes maximal.

Further explanation accessories

• Hydraulic roller adjustment: two cylinders, which make it possible to adjust the roller by using the tractorhydraulics.
• Straw harrow: is mounted behind the last row of discs and assures an improved coverage of crop residue.The height and angle are adjustable.
• Soil deflector plate right: a ground following side plate which keeps the soil stream inside the working width.
• Set soil deflector discs right: set of 2 adjustable side-discs. The first disc keeps the soil stream inside theworking width. The second disc has an equalizing function.
• Central greasing: all grease nipples are brought to one point.
• Oil bath bearing: maintenance free bearings in an oil filled housing.
