Lely Polymat Compact H

Name: Lely Polymat Compact H
Brand: Custom
SKU: FSR33F
Availability: OutOfStock

Posted More than 1 month agoAd Code FSR33F

5 photos

Contact for price

Verified seller

Description

The Polymat and Polyliner Ecoare equipped with the EASYtronicE control system. This compact computer contains hectare counters and alarms, such as low seed level signalling device,forward speed and fan speed.This terminal also controls the tramline system (optional).
New design hopper
Easy to mount
Modular on our Multidisc XLH and XXLH

EASYtronic electronics
Low-noise, oversized fan for low rpm and long life.
The Polymat and Polymat Compact 8 are driven by a large and durable metering wheel.
On Polymat and Polymat Compact H, stairs and platform are standard (optional on Polymat Compact 8).
The Polyliner and Polymat Compact H use the EASYtronic seeder computers. The dose rate control is fully electronic and the calibration test is fully automatic.
The Polymat and Polyliner coulter bars have 2 rows of coulters. This results in more clearance between the coulters and trash is able to loosen easily. The pressure of the coulters can be adjusted individually if required.
The Eco distributor beams are specifically designed for an even and full-width distribution of the seed pellets. The distributor beam can be mounted in front or behind the roller. There are many adjustments possible to obtain an even covering of the soil.
Perfect dose and distribution: throughout the years the metering unit has proven its accuracy and durability. Application rates range from 0,5 to 400 kg/ha. The metering unit is infinitely adjustable and has a reduction setting for the use of fine seeds.
A cleaning brush is standard. The seeds are dropped into the air flow and transported via a specially shaped elevation column, then distributed evenly to the tubes by the distribution head. Not applicable for Polymat Compact 8.
Compact mounting keeps the centre of gravity close to the tractor.

Standard specification Polymat Compact H

The Polymat Compact H is a machine for seeding OSR and green cover crops
Electronically driven, universal metering unit for coarse and fine seeds
Electronically driven metering and EASYtronic by means of speed measuring connector cable
Large hopper capacity of 600 litres
12, 16 or 24 distribution tubes
Hydraulically driven fan with large capacity for an accurate distribution
Stairs and platform behind the machine to reach the hopper easily and safely
Hopper cover
Quick-change system for mounting at disc harrow Multidisc (XL)H

Standard specification distributor beam Eco H

A steel profile with 12 or 16 spreading plates that accurately broadcast the seed. It can be mounted in frontor behind the roller. The angle is adjustable.

Special benefits

With the universal metering unit, coarse and fine seeds can be seeded from 1 to 200 kg/ha.
Simple electronic controlled calibration test with a bucket.
The Polymat Compact H comes standard with a quick hitch for the Multidisc H headstock. It is simple to takethe seeder off or put it back on.

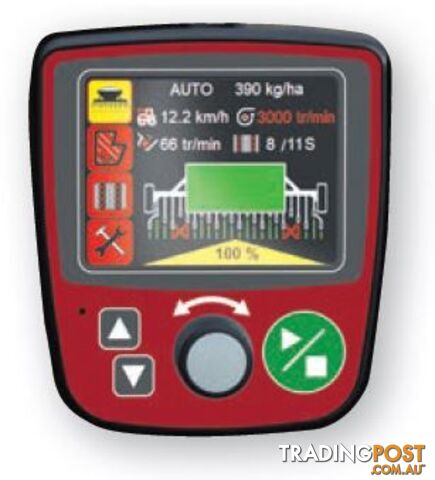

EASYtronic: this compact terminal with touch screen and color display regulates automatically the dosage andincludes hectare counters and a control system that shows fan speed and hopper content. The computer is linked via CANbus with the job computer on the machine.

Further explanation accessories

With the modular hopper extension(s) of 350 litres, it is easy to increase the hopper size.
Fan on the power beyond of load-sensing connection of the tractor. The EASYtronic seeder computerswitches the fan on and off.
EASYtronic LH5000 variable rate control unlock code + adapter (does not apply to EASYtronic+): using thisoption means that the EASYtronic computer can be connected with a GPS computer that controls the doserate in a site-specific way. Dosage is determined by the values on the GPS map.
EASYtronic+ ISOBUS exclusive CCI 200 display: applicable if the tractor is equipped with an integrated ISOBUSdisplay or an ISOBUS display from another manufacturer.
Wheel sensor kit + hitch sensor: allows the speed signal and hitch position to be measured on a tractor thatis not equipped with a 7 pin ISO plug.
Electronic metering wheel on the machine: is necessary for operating the machine with several (older)tractor models that don’t have a 7-pin plug in the tractor cabin.
GPS speed measuring sensor + hitch sensor: measures speed and hitch position.
Work lights improve the view on the field when working in the dark.
Covering harrow for improved covering of the seeds.

Contact for price
