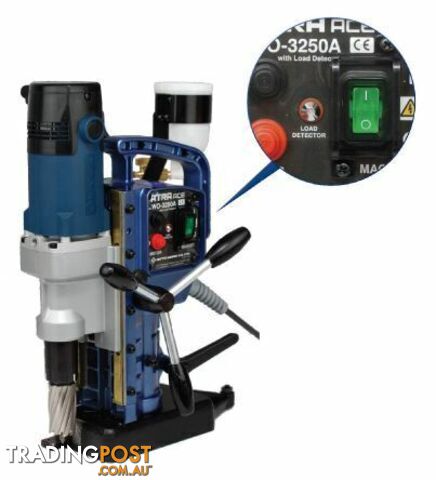

Nitto WO-3250A Magnetic Based Drilling Machine Manual Feed Atra Ace Nitto WO-3250A

NITTO MAGNETIC BASED DRILLING MACHINE MANUAL FEED ATRA ACE NITTO WO-3250A

KEY FEATURES
Manual feed

 New generation magnetic base drill helps meet productivity and safety goals
 New improved overload protection with LED indicator
 Advanced motor design
 Magnet switch protector
Cuts up to 32mm thru 50mm plate
Unique design allows easy conversion for use of twist drills up to 13mm diameter
Complete with coolant system
 Supplied in sturdy carry case

APPLICATIONS
 On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metalworking and construction jobs



SPECIFICATIONS
Model   -  WO 3250A
Power Source  -    220~240V AC 50/60HZ
Rated Power Consumption   -  950W
No Load Speed  -    530rpm
Hole Diameter   -  12-32mm
Plate Thickness  -   9-50mm
Magnet Holding Power -    900 kg/f
Weight  -  13kg



Standard Accessories

Carry Case
Coolant Tank
 Pilot pin 08035
 Spanner 17mm
 Spanner 7 x 8mm
 Spanner 8 x 10mm
 Safety strap
 Hex. socket bolt 5 x 12
 Hex. socket head set screw 8 x 28
 4mm Hex. socket screw key
 5mm Hex. socket screw key
 Spanner 8 x 10mm
 Sub handle and Feed handle

Optional Accessories


OZBROACH- (High-Speed Steel One-Touch Type 25-50mm depth of cut from 12-22mm dia)
 OZBROACH- Countersink (Part No. OT10-30CS)
 TCT Carbide Tipped Cutters (25mm, 35mm & 50mm depth of cut)
 Jet Oiler(Part No.TQ10581 can be used with tube Part No.TB01098)
 Chip Breaker (Part No. NPTB07691)
Lubrication Adaptor Ass'y (Part No. TB07306)
Alternative SKU: TXYZ00274
Alternative SKU: 016807403



Part Number/SKU: WO-3250A
