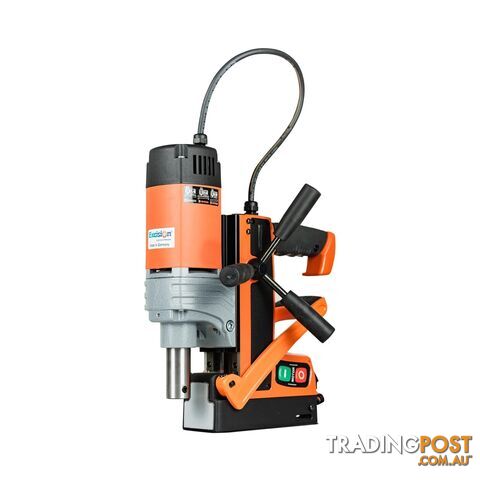

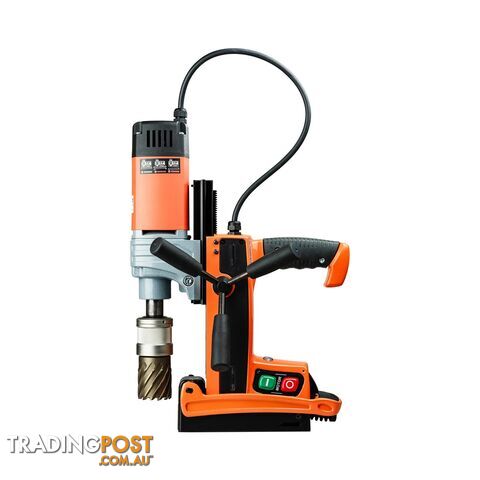

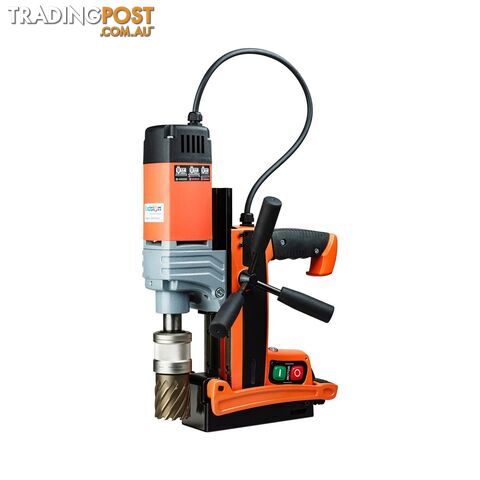

Magnex Drill 40 Excision 18801

Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.

Powerful permanent magnet - doesn't need a power supply
Very light and compact
Smooth start motor with overload protection and emergency stop
Stepless adjustment slides
Self-adjustment guides
Soft touch grips
Membrane keyboard
Quick-change chuck
105mm stroke
Suits 19mm Weldon shanks

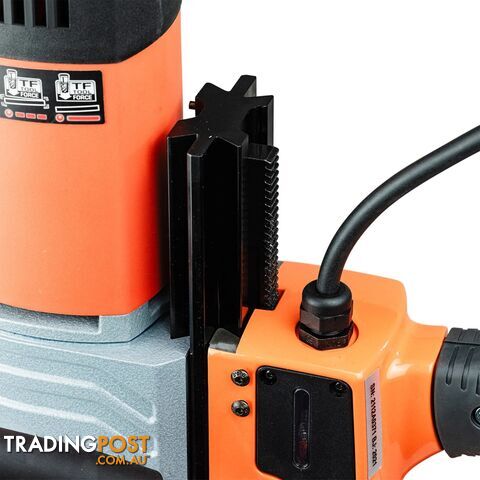

Double dove-tailed height-adjustment for using drill chucks
Ergonomic design
Solid brass guides

Drill Features and Specifications





Core Drill Dimensions

12.0-40.0mm


Cutting Depth

50.0mm


Twist Drill

1.0-13.0mm


Counter-Boring

10.0-40.0mm


Arbors

Quick-Release Chuck


Stroke

105mm


Height Adjustment

80mm


Gearbox-On-Load Speed

450rpm


Power Consumption

1,100W


Voltage

230V 50/60Hz


Tool Force (10mm)/Magnetic Adhesion Strength

2,800N/17,000N


Tool Force (6mm S235)

2,300N


Magnetic Base

72×190mm


Weight

9.9Kg



Part Number/SKU: 18801
