Kioti Daedong CK3010

Single pedal controls make changing between forward and reverse easy without clutching or hand shifting and the operators hands remain free for steering and implement control.

Engine

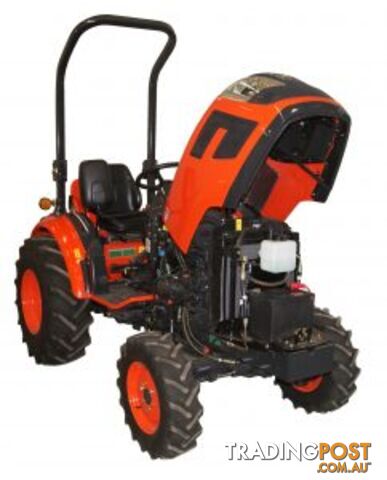

Kioti-Daedong diesel engines produce low noise, little vibration and meet or exceed EPA regulations. TheCK3010is equipped with a 3-cylinder 28hp water-cooled diesel engine. Traveling speed can be controlled with the hand lever and foot accelerator pedal. The fuel tank capacity is 25 litres.
A heavy duty front axle and standard 4WD guarantee powerful traction. TheCK3010has 2 infinite travelling speeds 17 km/h in forward and 12 km/h when in reverse. It comes with a hydrostatic single dry clutch transmission; standard rear differential lock, wet disc brakes and a standard 540/rpm PTO.

Transmission

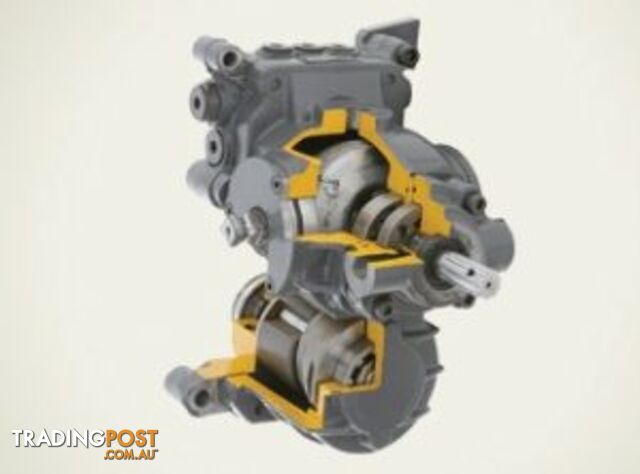

TheCK3010has 2 infinite travelling speeds 17 km/h in forward and 12 km/h when in reverse. It comes with a performance proven heavy duty HST drive unit. A single pedal controls traveling speed and direction with clutching or hand shifting, therefor the hands remain free for implement control. Rear differential lock, wet disc brakes and 540 rpm PTO are standard. A heavy duty front axle and 4WD guarantee powerful traction.

Operator Station

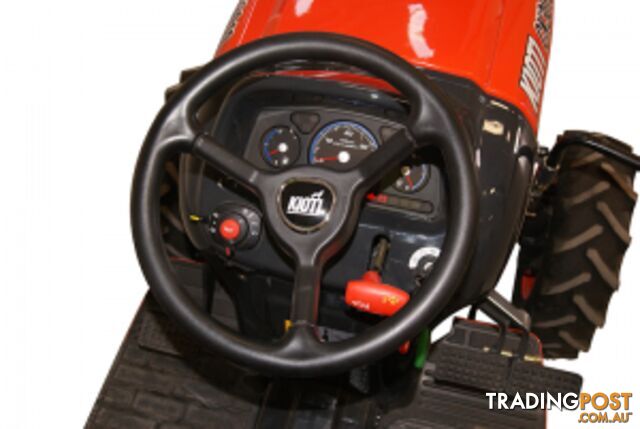

All control levers are easy to reach and allow the operator to work in comfort. The instrument panel is easily visible and the operator can monitor all operations at a glance.


Hydraulics
A standard joystick lever with a mid-mount double acting valve makes operation of the front-end loader easy, as all operations are performed with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. The CAT1 3-point linkage has maximum lifting capacity of 739 kg. Hydrostatic Power Steering is standard and makes manoeuvring easy for all operators especially when mowing or working with a front-end loader.The CK3010 is equipped with a tandem gear pump which has a pump capacity of 42.9 lpm.The CAT1 3-point linkage has maximum lifting capacity of 739 kg.
