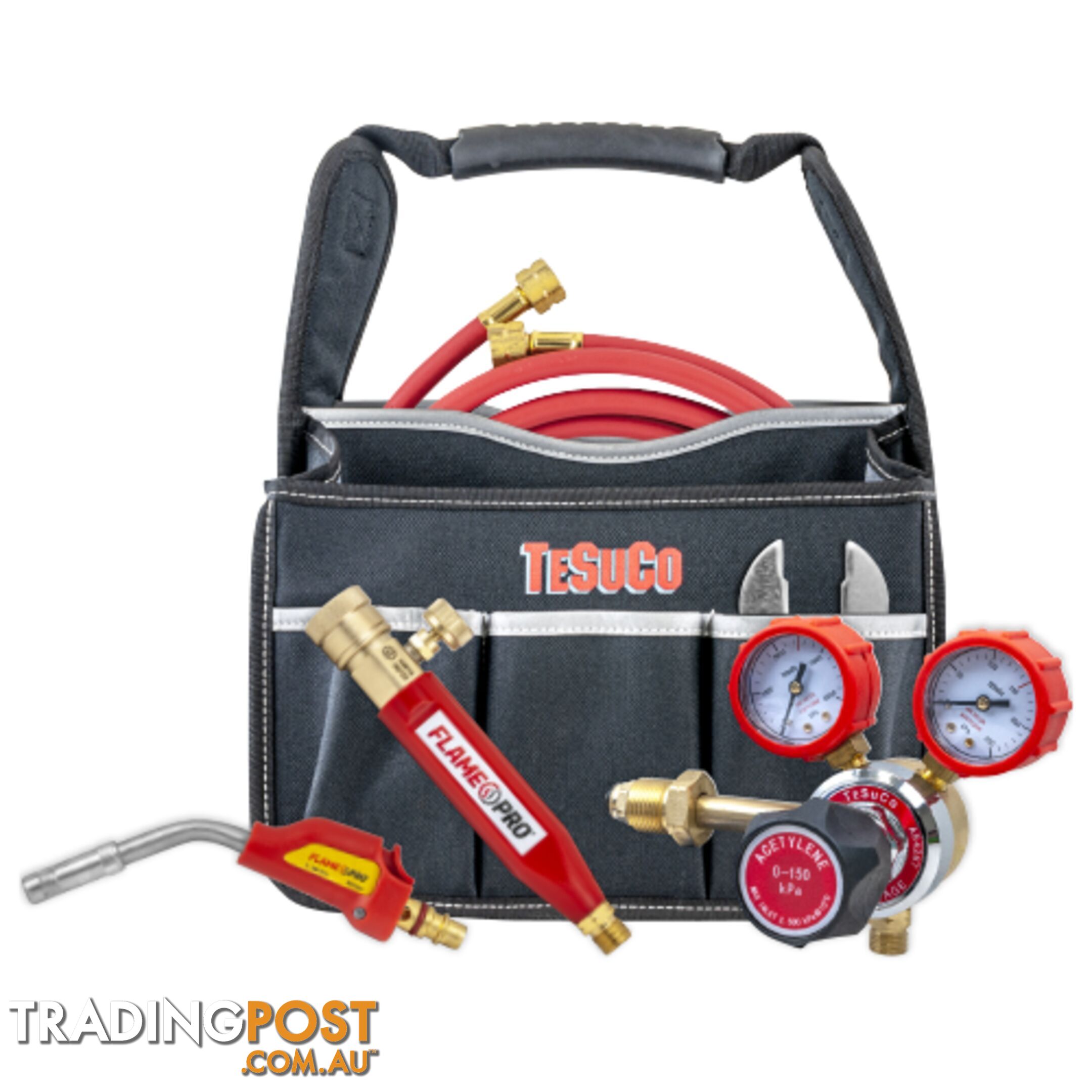

FlamePro Acetylene Torch Kit Complete Tesuko GBTAK

FLAMEPRO ACETYLENE TORCH KIT COMPLETE TESUKO GBTAK

Tesuco offers the Flame Pro™ Air Acetylene heating and brazing kit for fast  soldering and brazing applications in the HVAC-R & Plumbing industries.

Designed to be used with acetylene cylinders the handle has a quick connect to fit the swirl flame auto ignite tip attachment eliminating the need for a spark lighter. Push button ignition saves time and fuel cost. Swirl flame tips produce a very hot efficient flame by mixing acetylene and air completely through a helical blade.



Kit Include:

Acetylene Hose 4m (GWSWA4)
Tesuko Tool BAg (GTB1)
Combination Spanner(GWS)
Acetylene Regulator(RC1SAC1.5)
Spare Tip Available(GBTAN12)
Flame Pro Air Acetylene Auto Ignite Attachment With Size 12 Swirl Flame Tip(GBTAIA)
Flame Pro Air Acetylene Quick Connect Handle (GBTA)

FEATURES

 Quick connect tip attachment
 Swirl flame heat technology
Push button auto ignition
 Ergonomically designe

SPECIFICATIONS

Standards

Regulator :AS 4267-1995 R2016
Hose : AS/NZS 1335:2020
Handle and tip :ISO 9012:2008

Regulator RC1SAC1.5

Flow rate :28.5 m³/hr
Inlet configuration :Side
Maximum inlet pressure :3,000 kPa
Maximum outlet pressure :150 kPa
Inlet connection :Type 20
Outlet connection :5/8"-18 UNF LH Male

Flame Pro™ Handle:GBTA

Maximum inlet pressure :150 kPa
inlet connection :5/8"-18 UNF LH Male
Outlet connection :Quick connect female


Flame Pro

Auto Ignite Attachment :GBTAIA
Flow rate :0.27 m³/hr
Operating pressure :100 kPa (15 PSI,1 BAR)
Inlet connection :Quick connect male baynot

Hose

Length :4 m
Inlet connection : 5/8"-18 UNF LH
Outlet connection : 5/8"-18 UNF LH
Rating :2 Mpa (2,000 kPa)
Size :5 mm ID



Part Number/SKU: GBTAK

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
